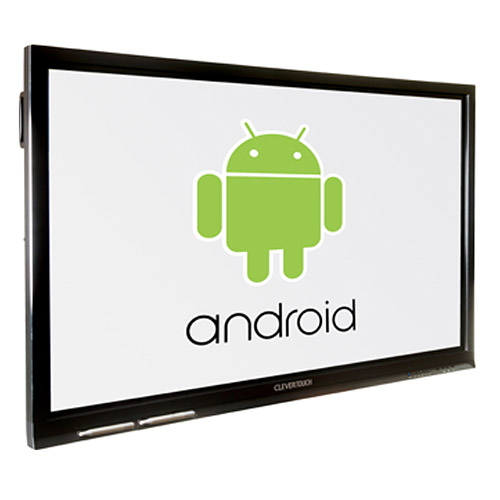

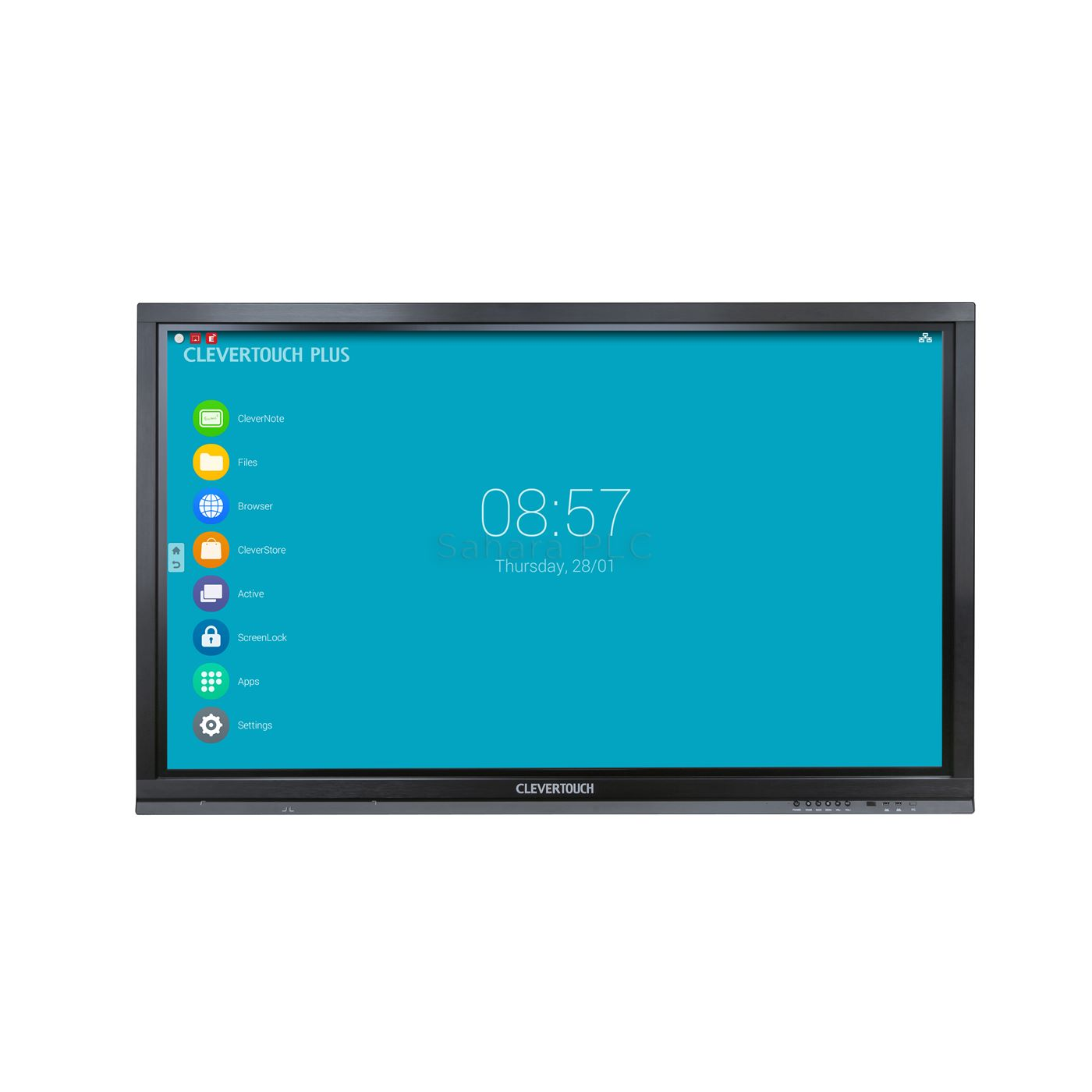

Clevertouch Plus 4K
Clevertouch Plus 75" 1080p 10-point touch with AG Glass LUX
Touchscreen: 1541018/1
Description
Designed for education, Clevertouch Plus 4K interactive touchscreens have found their home in the classroom.
Warranty: Five Year Warranty
Features
Display
Diagonal size 75inch
Screen type LED
Display area 1650.24(h) x 928.26(v)
Resolution 1920 (h) x 1080 (v)
Response time 6ms
Refreshing frequency 120Hz
Display colours 1.6.7M (8-bit)
Brightness 400 cd/m2
Contrast ratio 5000:1
Viewing angle 178°
Life time 50,000 hrs
Video / Audio
Speaker Type Built-in speaker
Max Output Power 2 x 10W
Connectivity
CVBS 1
VGA Input (15 pin D-Sub) 3
HDMI Input 3
PC-Audio 3
R/L (CVBS) 1
VGA Output 1
Audio output earphone port 1
Coaxial digital audio output 1
USB2.0 4
USB3.0 1
WAN(RJ45) 1
RS232 Control 1
Touch System
System Windows 7/Windows XP/Vista/Linux/Mac/ Android/Wince/Chrome
Sensing type Infrared System (5 points writing and 10 point touch)
Response area >Φ5mm
Response time <15ms
Communication mode Full-speed USB (driver free)
Surface protection Toughened Glass with Level 7 of Mohs Standard
Output coordinate 32767 x 32767
Life time Use Auto Power Control (APC) Technology; Life Time over 80,000 hrs
Android
System version Android 4.2.1
CPU ARM Cortex A9 Dual Core
GPU Quad Core
RAM 1.5G
ROM 8GB
Power
Power requirements 100V-240V AC 60/50Hz
Power consumption 418W
Power consumption in standby mode ≤0.5W
Physical Specifications
Key location and number Front physical key, 6
VESA (mm) 600 x 600 M8 screw
Accessories
AC power cable (3 metres)
Writing pen (19, 26, 127 mm)
Remote control
Application and driver disk
HDMI cable
VGA cable (5 metres)
USB cable (5 metres)
Audio cable (5 metres)
Operation instructions
WHDI transmit
HDMI cable
