Description

Powerful video collaboration for group conferences in a sleek design that is simple to use.

The Polycom RealPresence Group 500 solution is ideal for conference rooms and other collaborative environments, from small meeting rooms to larger rooms with dual screens. Powerful video and audio performance and interactive content collaboration bring users closer together and drive meaningful conversation for geographically dispersed teams. The compact, sleek design is easily hidden out of sight, keeping your rooms clutter-free.

RealPresence Group Series is the only standards-based group video conferencing system that is certified with Skype for Business and Office 365, making it easy to connect without changing the way you work. The Skype interface is instantly familiar for an intuitive experience that needs no training. And because RealPresence Group is also standards-based it’s easy to connect with customers, partners, and others outside your organization.

Content can be sent and received in up to 1080p60 quality, and it’s easy to share using the HDMI or VGA connections or wirelessly from your laptop or mobile device. For advanced content collaboration, connect to Polycom Pano™ for easy wireless sharing from up to 4 users at the same time plus annotation and white boarding when using a touch display

Use the optional built-in multipoint to host video calls with up to 6 participants in HD quality. Included support for dual monitors helps participants see everything more clearly for meetings with greater impact.

Conference rooms come in all shapes and sizes, but it is important to deliver a great experience for all participants, no matter the size of the room. The Polycom RealPresence Group 500 solution offers flexible options that ensure that all participants can see and be seen, no matter where they are sitting.

Polycom EagleEye™ Producer uses innovative facial-tracking algorithms to accurately frame all room participants, or focus on the person speaking—whichever you prefer, eliminating the “bowling alley” view that is all too common in video calls.

For a more immersive feel, Polycom EagleEye™ Director II offers the highest performance speaker tracking experience, transmitting facial expressions and body language for higher impact and more productive video collaboration

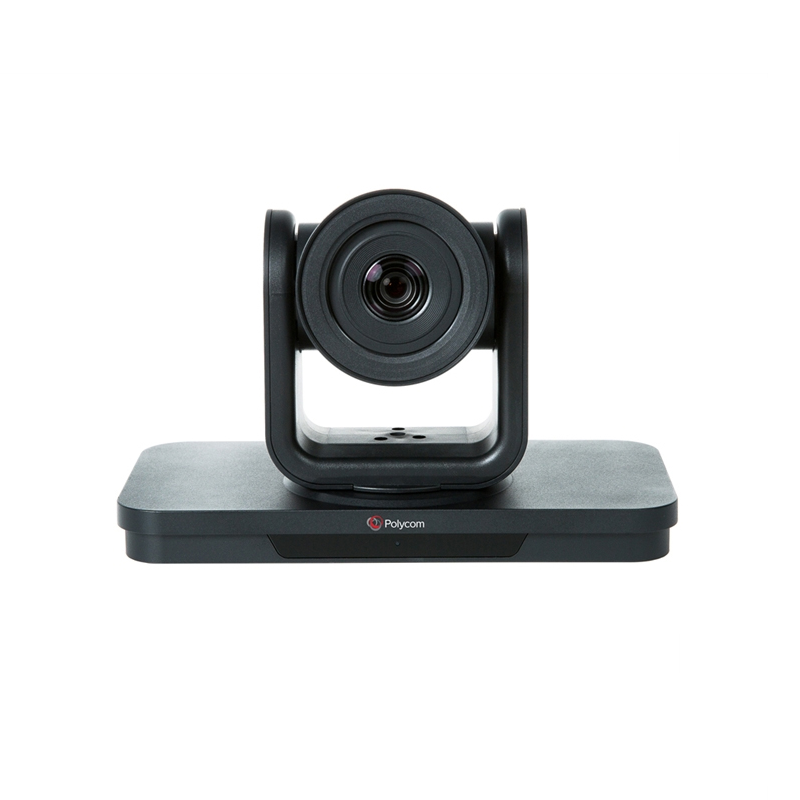

The Polycom EagleEye™ IV camera offers brilliant visual clarity with 12x or 4x zoom. For smaller rooms, the Polycom EagleEye™ Acoustic camera takes just seconds to mount on a flat-panel display and delivers excellent 1080p image quality.

Features

Product specifications

Package includes:

• RealPresence Group 500 codec

• Cable bundle

• Remote control

• EagleEye IV camera and RealPresence

Group Microphone Array, or EagleEye

Acoustic camera

Video standards and protocols

• H.261, H.263, H.264 AVC, H.264 High

Profile, H.264 SVC, RTV

• H.239/Polycom People+Content™

• H.263 & H.264 video error concealment

Video input

• 1 x HDCI

• 1 x HDMI 1.3

• 1 x VGA

Video out

• 2 x HDMI 1.3

People video resolution

• 1080p, 60 fps from 1740 Kbps

• 1080p, 30 fps from 1024 Kbps

• 720p, 60 fps from 832 Kbps

• 720p, 30 fps from 512 Kbps

• 4SIF/4CIF, 60 fps from 512 Kbps

• 4SIF/4CIF, 30 fps from 128 Kbps

• SIF (352 x 240), CIF (352 x 288)

from 64 kbps

• QSIF (176 x 120), QCIF (176 x 144)

from 64 kbps

• w288p from 128 Kbps

• w448 from 384 Kbps

• w576p from 512 Kbps

Content video resolution

• Input

- HD (1920 x 1080i), HD (1920 x 1080p)

- WSXGA+ (1680 x 1050)

- UXGA (1600 x 1200)

- SXGA (1280 x 1024)

- WXGA (1280 x 768)

- HD (1280 x720p), XGA (1024 x 768)

- SVGA (800 x 600)

• Output

- WUXGA (1920 x 1200)

- HD (1920 x 1080)

- WSXGA+ (1680 x 1050)

- SXGA+ (1400 x 1050)

- SXGA (1280 x 1024)

- HD (1280 x 720)

- XGA (1024 x 768)

- VGA (640 x 480)

• Content frame rate

- 5–60 fps (up to 1080p resolution at 60 fps)

• Content Sharing

- People+Content and People+Content IP

Audio input

• 1 x RealPresence Group microphone

array input port (supporting a total of 4 microphone arrays)

• USB headset support

• 1 x HDCI (camera)

• 1 x HDMI

• 1 x 3.5 mm stereo line-in

Audio output

• 1 x HDMI

• USB headset support

• 1 x 3.5 mm stereo line-out

Other interfaces

• 2 x USB 2.0

• 1 x RS-232, 8-pin mini-DIN

Audio standards and protocols

• 22 kHz bandwidth with Polycom®

Siren™ 22 technology, AAC-LD (TIP calls),

G.719 (Live Music Mode)

• 14 kHz bandwidth with Polycom®

Siren™ 14 technology, G.722.1 Annex C

• 7 kHz bandwidth with G.722, G.722.1

• 3.4 kHz bandwidth with G.711, G.728, G.729A

Polycom® Constant Clarity™ technology

• Automatic gain control

• Automatic noise suppression

• Keyboard noise reduction

• Polycom® NoiseBlock™ technology

• Polycom® Acoustic Fence™

• Live music mode

• Instant adaptation echo cancellation

• Audio error concealment

• Polycom Siren Lost Packet Recovery™

(LPR™) technology

• Polycom® StereoSurround™ technology

Other supported standards

• H224/H.281, H.323 Annex Q, H.225, H.245, H.241, H.239, H.243, H.460

• BFCP (RFC 4582)

• TIP

Network

• IPv4 and IPv6 support

• 1 x 10/100/1G Ethernet

• Auto-MDIX

• H.323 and/or SIP up to 6 Mbps

• Polycom® Lost Packet Recovery™

(LPR™) technology

Accessories

No accessories listed

Specifications

  • Product Code: 7200-64510-102
  • Manufacturer: Polycom
  • Wireless: Yes
  • VGA (D-sub) Ports: 1
  • USB Ports: 2
  • RS232 Ports: 1
  • Composite Video: No
  • Card Reader: No
  • Speakers: Yes
  • Number of Speakers: 1
  • Product Dimensions: 1.3” H x 1.2” W x 4.8” D
  • Product Weight: 2.45 lbs
