    Description

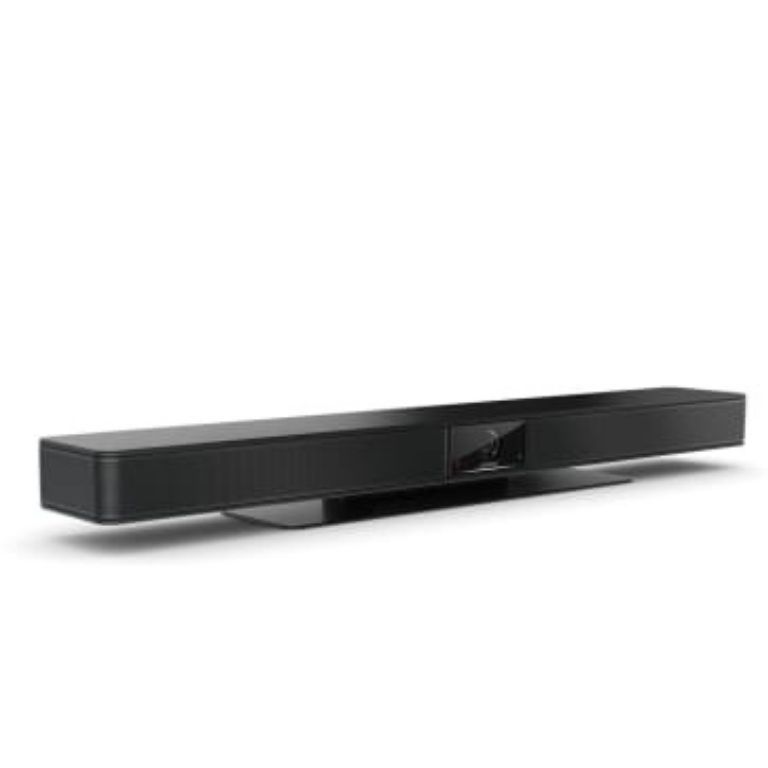

    The Bose Videobar VB1 Cleans up the conferencing experience

    An elegant low-profile design that complements the room, improves aesthetics, and connects via a single USB cable, eliminating clutter.

    Make conversation more natural with six beam-steering microphones that actively focus on voices and reject noise; and auto EQ that delivers optimized audio to all participants.
    Communicate and be seen more clearly — a 4K ultra-HD camera with autoframing allows everyone to see and understand the presenter, whiteboard, flipchart, or other in-room objects — and feel more like they’re together in the same room.

    Bring enhanced video and audio performance to popular Unified Communications platforms such as Microsoft Teams, Google Meet, Zoom, and more.

    Support multimedia presentations with premium audio with Bose-proprietary transducers that deliver room-filling sound from a USB-connected laptop or wireless Bluetooth® device.

    Support multimedia presentations with premium audio with Bose-proprietary transducers that deliver room-filling sound from a USB-connected laptop or wireless Bluetooth® device.

    • AN ALL-IN-ONE SOLUTION
    • 4K ULTRA-HD CAMERA
    • MULTIPLE MOUNTING OPTIONS
    • 6 BEAM-STEERING MICROPHONES
    • SIGNATURE BOSE SOUND QUALITY
    • REMOTE MANAGEMENT
    • ELEGANT LOW-PROFILE DESIGN

    Features

    Bose Videobar VB1 Features

    Mount easily in multiple ways with included table stand and wall-mount kit or with VESA mounting accessory (sold separately)

    Connect to existing network infrastructure, making installation and troubleshooting faster and allowing for remote updates, management, and monitoring

    Configure easily with Bose Work Configuration software, available as an app or via web browser; and manage remotely with Bose Work Management software for single-device or enterprise-wide, multi-device changes, and to view device status in real time

    Control settings in real time from a smartphone using the Bose Work mobile app to easily adjust volume, mute, pan, tilt, zoom, zoom presets, and Bluetooth® pairing

    Easily connect a smartphone via Bluetooth connectivity to use as a standalone speakerphone or stream music

    Specifications


    Download Specifications Sheet

    Bose Videobar VB1 Specification

    Technical Specifications

    LOUDSPEAKER ARRAY
    Configuration Stereo loudspeakers, ported enclosure
    Amplifier Power 20 W per channel, < 0.3% distortion over frequency range
    Frequency Response (–10 dB) 85 – 20,000 Hz
    Maximum SPL @ 1 m 89 dB (IEC 60268-5, mono input, wall-mounted)

    MICROPHONE ARRAY
    Configuration 6 microphones
    Frequency Response (±3 dB) 20 – 15,000 Hz
    Pickup Range 6.0 m (19.7 ft)
    Technology Static and adaptive dynamic beam-forming, 3 exclusion zones, stereo acoustic echo
    cancellation (AEC), digital noise suppression

    CAMERA AND VIDEO
    Field of View (FOV) 123° diagonal × 115° horizontal × 81° vertical
    Image Sensor 8 MP
    Focus Distance 0.5 m (1.6 ft) to ∞
    Lens Up to 5x digital zoom, detachable camera privacy cover (included)
    Positioning Autoframing capability or manual pan-tilt-zoom (PTZ) with 3 configurable presets
    (Home, 1, 2)
    Processing Automatic white balance, automatic brightness, digital noise reduction
    USB Device Video Class (UVC) v1.1
    Supported Video Resolutions UHD 2160p (4K), 1080p, 720p, 960×480, 848×480, 640×480, 640×360, 432×240 (30 fps)
    Video Encoding H.264, M-JPEG

    CONNECTIONS
    USB USB Type-C® to host computer (with DisplayLink) (USB 3.0 UAC, UVC, HID)
    Network Wired: RJ-45, 1 Gbps Ethernet (IEEE 802.3)
    Wireless: Wi-Fi 802.11ac
    Bluetooth Bluetooth 4.2 HSP, A2DP, AVRCP, BLE
    Display HDMI 1.4b and 2.1 output (to display, from host computer)
    Analog Audio Stereo 3.5 mm (1/8 in) input
    General Purpose 2-pin Euroblock general-purpose input
    Power
    Via external power supply with localized power cord (included)
    Input: 110 – 240 VAC, 50/60 Hz, 1.5 A max.
    Output: 24 VDC, 1.875 A

    SOFTWARE APPLICATIONS
    Control/Configuration
    Bose Work Configuration software (available for Windows and macOS or via web browser)
    Bose Work Management software (available for Windows)
    Bose Work mobile app (available for iOS and Android)

    SYSTEM REQUIREMENTS
    Operating System
    Windows 7, 8.1, or 10
    macOS 10.10 or higher
    Chrome OS (Google Chromebook)
    Bose Videobar VB1
    all-in-one USB conferencing device
    PRO.BOSE.COM 3 OF 4
    For additional specifications and application information, please visit PRO.BOSE.COM. Specifications subject to change without notice. 11/2021

    TECHNICAL DATA
    REGULATORY
    Safety IEC/UL/EN 60065:2014/A11:2017, IEC/UL/EN 62368-1:2014/A11:2017
    EMC FCC Part 15B Class B, ICES-003 Class B, CISPR 13, EN55032 Class B, EN55035,
    EN61000-3-2, EN61000-3-3, BSMI CNS13439
    Wi-Fi and Bluetooth FCC Part 15C, RSS-GEN, RSS-247, RSS-102, EN300328, EN301893, EN301489
    Environmental RoHS

    PHYSICAL
    Operating Temperature 0 °C to 40 °C (32 °F to 104 °F), 90% non-condensing humidity
    Storage Temperature -40 °C to 70 °C (-40 °F to 158 °F), 93% relative humidity
    Mounting
    Table stand with Kensington lock slot and mounting hardware (included)
    Wall-mount bracket with mounting hardware (included)
    Display mounting kit (optional)
    Mud ring (optional)
    Product Dimensions
    (Width × Height × Depth) 686 mm × 48 mm × 96 mm (27.0 in × 1.9 in × 3.8 in)
    Net Weight 2.5 kg (5.6 lb)
    Shipping Weight 5.4 kg (12.0 lb)
    Included Accessories
    Bose Videobar VB1
    HDMI 2.0 cable, 1.5 m (4.9 ft)
    USB-C® 2.0 cable, 5.0 m (16.5 ft)
    Infrared remote control with 2 AAA batteries
    Wall-mount bracket with mounting hardware
    Table stand with hardware
    Power supply with localized power cord
    Cable management kit with mounting hardware
    Camera privacy cover
    USB-A-to-C adapter
    2-pin Euroblock connector
    Quick start guide, table-mount setup guide, wall-mount setup guide, safety instructions
    Optional Accessories
    Display mounting kit
    Right-angle USB 3.1 cable, 2.0 m (6.5 ft)
    Mud ring

    PRODUCT CODES
    842415-1110 Videobar VB1 120V US
    842415-2110 Videobar VB1 230V EU
    842415-3110 Videobar VB1 100V JP
    842415-4110 Videobar VB1 240V UK
    842415-5110 Videobar VB1 240V AUS
    842888-0010 Display Mounting Bracket
    843944-0010 2m USB 3.1 Cable
    861846-0010 Mudring

    Accessories

    Bose Videobar VB1 Accessories

    • Bose Videobar VB1 Display Mounting Kit
    • Bose Videobar VB1 Right-angle USB 3.1 Cable
    • Bose Videobar VB1 Mud Ring
