Description

Warranty: Warranty term and upgrade options vary by region. Contact your local reseller or distributor for information and visit www.clevertouch.com/about/warranty

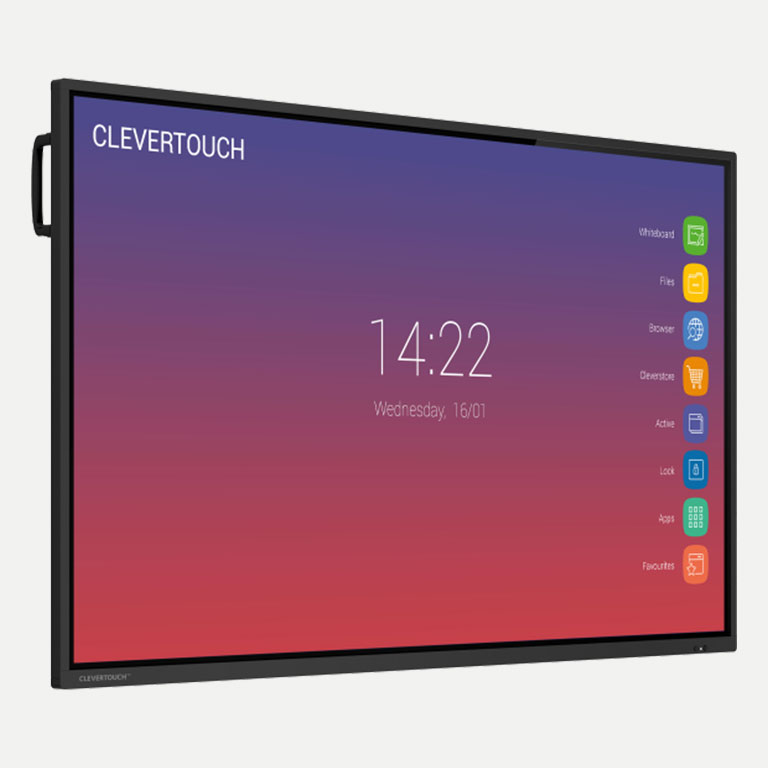

The CLEVERTOUCH IMPACT ™ is the perfect all-round solution for the classroom. Featuring high precision technology, Whiteboard App, Cleverstore, Lynx and Snowflake. Ideal for the modern classroom, IMPACT helps to save time lesson planning with lots of resources and learning activities.

Free classroom apps: Cleverstore contains hundreds of apps in all subjects and a range of languages including literacy, STEAM and languages. Each app is tested by our team to make sure no adverts, in app purchases, or inappropriate content gets through.

Classroom Essential Apps: Includes whiteboard, annotation, timer, media players, browser, PDF reader, screen recorder, spinner, voting buttons and maths tools.

Infinity Whiteboarding: Make notes, diagrams or images, add and scroll through multiple pages, insert an image or change the background colour. Now includes handwriting and formula recognition.

The Clevertouch IMPACT ™ is compatible With Windows 7 To 10, Windows XP, Linux, Mac, Android, Chrome.





Visit the manufacturer's website.

Features

Software

LYNX: Lynx annotation and lesson planning software allows teachers to create multi-page lessons with embedded media. Use with a connected computer, or in the Lynx app.

Snowflake: Create interactive activities for your class, or join the online Lessons Community to download activities that others have created.

Features

Infinity Whiteboarding: Never run out of space with our infinite canvas. With numeracy tools, handwriting-to-text recognition, and the ability to insert images and shapes.

High Precision Technology: Super Glide Touch technology offers the most fluid writing experience on a touchscreen. Differentiates between palm-erase, finger-touch, and stylus writing.

Remote Management: View, control, update and troubleshoot remotely. Your IT dept. can work on your Clevertouch screen without needing to come to the classroom.

LUX 8.0: Easy to use interface. Simple, quick, intuitive apps and gestures designed to make everyday tasks seamless.

NFC Pen Tray: With the NFC pen tray teachers can be assigned with a fob card that carries all their settings.

Cloud Accounts: Sync with your Cloud accounts so that you can work anywhere at any time.

Cleverstore: Access hundreds of free teaching apps to make lessons more engaging.

Audio: 2 x 15W speakers for crystal clear sound quality from anywhere in the room.

Comprehensive Warranty: With a five year warranty and fantastic support, we've got you covered.

Connectivity: Huge connectivity including one of the latest USB-C ports. Allows single cable connection for audio, video and touch.

Specifications


Download Specifications Sheet

Display

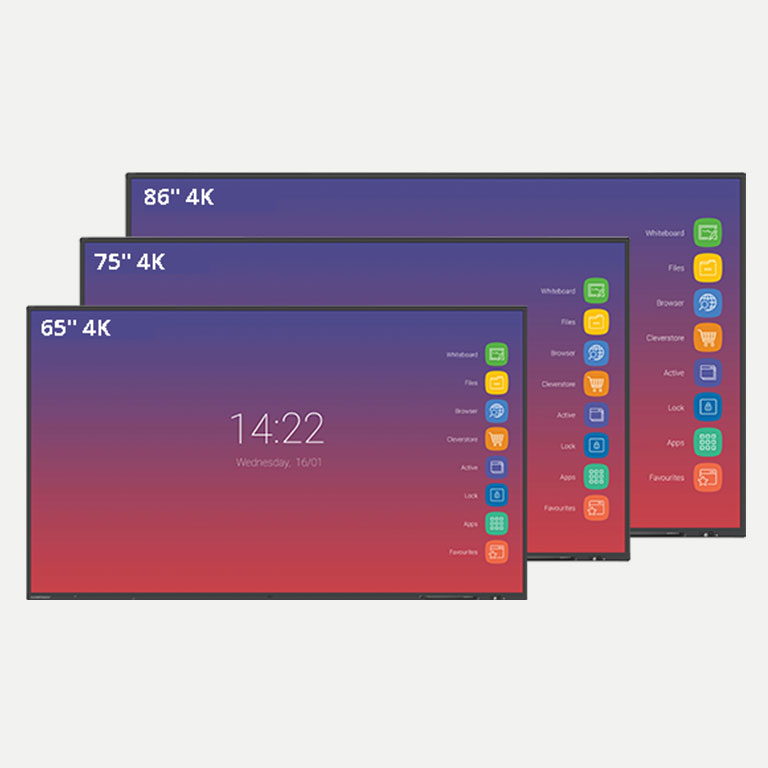

Diagonal Size 65" 4K, 75" 4K, 86" 4K
Screen Type TFT LCD - Direct LED Backlight
Aspect Ratio 16:9
Display Colours 1.07 Billion (10 bit)
Resolution 4K UHD (3840x2160 @60Hz)
Response Time 8ms
Refresh Rate 60Hz
LCD Viewing Angle 178˚
Brightness 400 cd/m2
Contrast Ratio
65" 1200:1
75" 1200:1
86" 1200:1
Dynamic Contrast Ratio
65″ 5000:1
75″ 5000:1
86″ 5000:1
Glass Hardness Tempered Glass - Mohs Level 7
Glass Type Heat tempered - Anti Glare - Super Glide Surface
Main Board MS848

Interactivity

Writing Technology High Precision Technology
Continuous Touch Points 20
Touch Resolution 32768x32768px
Response Time < 10ms
Touch Accuracy 1.5mm
Minimum Object Size 3mm
Touch Tool Finger, Gesture & Pen
Simultaneous Writing Yes
Ink In Tools Yes – LYNX
Pens Included 2 with different colour assignment to each end
Pen Type Dual Recognition Stylus
Pen Holder NFC Pen Tray (optional extra)
Pen Tip Diameter 3mm/7mm
Pen & Touch Differentiation Yes
Pen Identities 2
Palm Rejection Yes
Annotation Over Any Source Yes
Classroom Essential Apps
Includes Whiteboard, Annotate, Timer, Media Players,
Browser, PDF Reader, Screen Record, Spinner, Voting,
Maths Tools
Compatibility Windows 7 to 10, Windows XP, Linux, Mac, Android,
Chrome
Tracking Rate 6m/s
Scan Rate 200Hx
Gestures & Edge Swipes Windows Supported

Connectivity

OPS Slot 1 - Intel® spec
HDMI in 3
HDMI Out 1
USB-A 2.0 6 (1 for system upgrade)
USB Touch (type B) 3
USB A 3.0 (faster data transfer) 3
USB C 1 (non charging)
LAN In (RJ45) 1 GB
RS-232 Yes
Wake-on-Lan Yes
Clevertouch WiFi Module Yes
Bluetooth Yes
VGA In 1
VGA Audio In 1
Optical Out 1
Headphone 1
Touch Out 2
NFC Reader / Writer Optional extra
Camera Optional extra

Computing

Operating System Android Oreo 8
System Version LUX 8
RAM 2GB
Internal Storage 16GB
CPU Dual Core A73+Dual Core A53
GPU Dual Core Mali G51
Android Resolution 1080p
Integrated LUX UI Yes

Audio

Dual Front Facing, Bass
Enhanced Speakers 2 x 15 Watt Speakers
Optical Audio Out Yes
Audio Out Yes
SPDIF / Fibre Yes
Sound Channel 2.0

Power

Power Requirements 100 – 240V ~ 50/60Hz
Power Consumption (Normal)
65″ 104W
75″ 170W
86″ 155W
Power Consumption (Standby) < 0.5 Watts
Ultra Quiet Fanless Design Yes

Operating & Storage Environment

Operating Temperature 0˚ to 40˚
Storage Temperature -20˚ to 60˚
Operating Humidity 10% to 90% RH
Storage Humidity 10% to 90% RH
Altitude Below 5000 metres

Physical Specifications

Panel Dimensions
65" 1489×919×91mm
75" 1710x1004x88mm
86" 1957x1143x87mm
Packed Dimensions
65" 1669x223x1015mm
75" 1930x280x1140mm
86" 2123x280x1310mm
Net Weight
65" 39.90Kg
75" 51.95Kg
86" 66.45Kg
Packed Weight
65" 49.25Kg
75" 68.30Kg
86" 90.05Kg
VESA Mount Point
65" 600×400mm
75" 800x400mm
86" 800×600mm

Warranty

Warranty term and upgrade options vary by region. Contact your local reseller or
distributor for information and visit www.clevertouch.com/about/warranty

Compliance & Certification

Regulatory Certification CE, FCC, UL, Energy Star & EEC

IMPACT™ Built-in Features

NUITEQ™ Snowflake Yes
LYNX™ App With Online Lesson
Planning Yes
Cleverstore™ App Store For
Education Yes
Embedded Digital Signage Yes
Clevershare™ Mirroring Any
Device To The Board Free for the life of the screen (touch back)
Integrated Personalised
Accounts Profiles Yes
Cloud Account Access
Embedded Room Booking Yes
Whiteboard Annotation Yes
Email Out Direct From
Touchscreen Yes
Scan QR Code For Saving Work Yes
CleverMessage™ - Instant Alert
Messaging Yes
Over-the-Air Updates Yes
Remote Management Of
Touchscreens (MDM) Yes - Five year licence

Packed Contents - Inside your Clevertouch Box

What’s In The Box (1) Clevertouch IMPACT™
(1) 1.5M Length HDMI Cable
(1) 5M Length USB cable (A-B)
(1) 1.5M USBC Cable
(1) 3M Regional Power Cable
(1) Remote Control
(2) Batteries for Remote Control
(2) Dual Recognition Stylus
(1) User Guide
(1) Quick Install Guide
(1) Clevertouch WiFi Module
(2) Antenna

Installation

The installation of this product should be completed by a qualified installer. Use of
components not supplied by Clevertouch or not meeting minimum specifications may
impact performance, safety and warranty. For more information, visit clevertouch.co.uk

Support

For all Clevertouch products, visit: support.clevertouch.com

Accessories

Clevershare3

Screenshare with touch-back

Connect any device with USB-C port using the Clevershare 3 dongle. Compatible with IMPACT, IMPACT Plus and UX Pro.

PC Modules

i5 OPS

OPS module for IMPACT, IMPACT PLUS, and UX Pro

8th Generation “Whiskey Lake” Processor, 8GB DDR4 2400 RAM, 250GB NVMe M.2 SSD, Supports up to 4K video resolution

i7 OPS

OPS module for IMPACT, IMPACT PLUS, and UX Pro

8th Generation “Whiskey Lake” Processor, 16GB DDR4 2400 RAM, 250GB NVMe M.2 SSD, Supports up to 4K video resolution

i5 PC module

Slot in PC module for Plus Series and Pro Series High Precision and E-CAP

Windows 10 Pro Intel® Core™ i5 PC with 4GB RAM and 128GB SSD. Integrated Intel® HD Graphics and Intel H110 Express Chipset. 6x USB 3.0, 1x RJ45, 1x VGA out, 1x audio out, 1x audio in, 1x DisplayPort, 1x HDMI out.

i7 PC module

Slot in PC module for Plus Series and Pro Series High Precision and E-CAP

Windows 10 Pro Intel® Core™ i7 PC with 8GB RAM and 256GB SSD. Integrated Intel® HD Graphics and Intel H110 Express Chipset. 6x USB 3.0, 1x RJ45, 1x VGA out, 1x audio out, 1x audio in, 1x DisplayPort, 1x HDMI out

Trolleys & Mounts

Electrical Trolley Lift - Low Access

Compatible with all Clevertouch displays

This model is suitable for smaller children with a minimum screen height of 1040mm/41-inch to the centre of the screen, and 500mm/19-inch height adjustment

Electrical Trolley Lift and Tilt - Standard Height

Compatible with 55"-70" Clevertouch displays

Tilts 90° for whiteboard, easel or table mode. Suitable for taller children and adults, with a minimum screen height of 1175mm/46-inch to the centre of the screen, and 500mm/19-inch height adjustment

Electrical Trolley Lift and Tilt - Low Access

Compatible with 55"-70" Clevertouch displays

Tilts 90° for whiteboard, easel or table mode. Suitable for smaller children or seated users, with a minimum screen height of 960mm/38-inch to the centre of the screen, and 280mm/11-inch height adjustment

Electrical Trolley Lift and Tilt - All Heights

Compatible with 55"-70" Clevertouch displays

Tilts 90° for whiteboard, easel or table mode. Suitable for working at all heights, with a minimum screen height of 710mm/28-inch to the centre of the screen, and 700mm/27-inch height adjustment

Electrical Wall Lift - Standard Height

Compatible with all Clevertouch displays

Suitable for taller children and standing adults, with a minimum screen height of 1285mm/50-inch to the centre of the screen, and 500mm/19-inch height adjustment

Electrical Wall Lift - Low Access

Compatible with all Clevertouch displays

Suitable for smaller children or seated users, this wall lift has a minimum screen height of 960mm/38-inch to the centre of the screen, and 500mm/19-inch height adjustment.
