Description

Warranty: 60 months Carry-in or 12,000 h

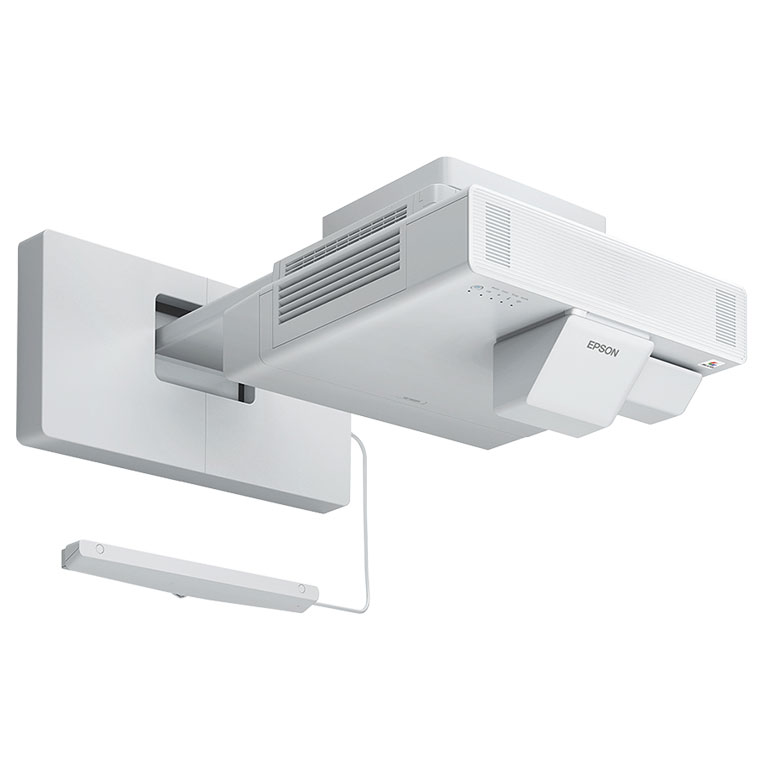

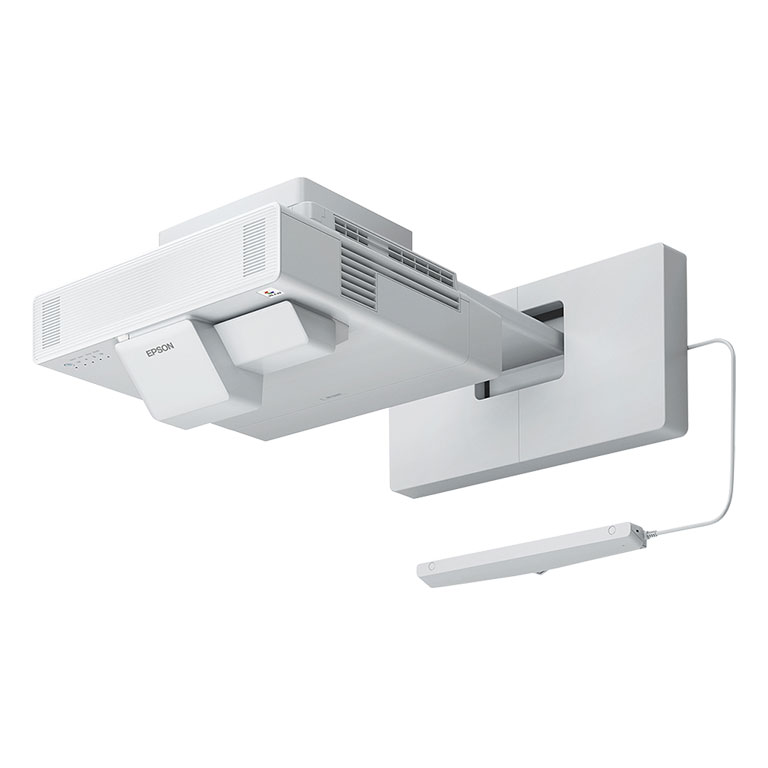

EB-1485FI Laser interactive display delivers flexible display options and sizes

Deliver impactful sessions with a multi-touch display of up to 100 inches (16:9 standalone), 120 inches (16:6 standalone), or 155 inches using Epson’s DuoLink feature, which combines two interactive display using built-in Edge Blending.

Promotes collaboration and connectivity

The intuitive and easy-to-use UI, new touch home screen and new interactive OSD menu make it simple to set up and navigate across functions. Featuring multi-touch pen and finger capabilities, wireless BYOD connectivity and screen mirroring (Miracast). It also has secure user collaboration tools and an array of powerful connectivity options, both wireless and wired, including HDBaseT and HDMI out. The Epson iProjection App is available to download for free, providing seamless wireless connectivity and collaboration control from multiple devices and platforms. It’s compatible with Windows, Office 365 suite and iOS, allowing the use of Office applications via PCs and tablets.

Sliding split screen

Combine up to four sources, such as video conference systems from multiple video sources and presentations, to optimise meeting interactions.

Fit and forget technology

Once installed, use for up to 20,000 hours without any maintenance, with the additional peace of mind of a five-year warranty. Helping to reduce running costs, and meaning you can ‘fit and forget’ and continue with the job in hand.

Features

EB-1485FI Laser Interactive Display Key Features

Flexible display options and sizes: Cater for user needs in any working environment
All-in-one interactive meeting display: Combines multiple resources in one interactive collaboration device
Increase productivity & agile working: Share and display content from a range of devices simultaneously
Sliding split screen: Up to four displays in one image - project images from different sources
Easy installation: Quick set-up with auto-adjusting calibration function

Specifications


Download Specifications Sheet

EB-1485FI Laser Interactive Display Features

Tech Specs

Product features and specifications are subject to change without prior notice.

Technology

Projection System
3LCD Technology
LCD Panel
0.62 inch with C2 Fine


Color Light Output
5,000 Lumen- 3,500 Lumen (economy)
White Light Output
5,000 Lumen - 3,500 Lumen (economy)
Resolution
Full HD 1080p, 1920 x 1080, 16:9
Aspect Ratio
16:9
Contrast Ratio
Over 2,500,000 : 1
Light source
Laser
Lamp
20,000 h durability, 30,000 h durability (economy mode)
Laser Light source
30,000 hours Durability Eco
Keystone Correction
Manual vertical: ± 3 °, Manual horizontal ± 3 °
Colour Video Processing
10 Bits
2D Vertical Refresh Rate
192 Hz - 240 Hz
Colour Reproduction
Up to 1.07 billion colours

Optical

Throw Ratio
0.27 - 0.37:1
Zoom
Digital, Factor: 1 - 1.35
Lens
Optical
Screen Size
65 inches - 100 inches
Projection Distance Wide
0.4 m ( 65 inch screen)
Projection Distance Tele
0.6 m ( 100 inch screen)
Projection Distance Wide/Tele
0.78 m ( 120 inch screen)
Projection Lens F Number
1.5
Projection Lens Focal Length
3.9 mm
Projection Lens Focus
Manual
Offset
9 : 1

Connectivity

Interfaces
USB 2.0 Type A (2x), Powered USB, RS-232C, Wired Network, Wireless LAN IEEE 802.11a/b/g/n/ac, Wi-Fi Direct, VGA in (2x), VGA out, HDMI in (3x), Component in, Miracast, Stereo mini jack audio out, Stereo mini jack audio in (3x), Microphone input, Finger-touch interface, Multi-Touch interface, USB 2.0 Type B (2x), Sync. in, Sync. out, HDMI out, HDBaseT
Epson iProjection App
Ad-Hoc / Infrastructure
Network Protocol
HTTPS, IPv4, IPv6, SNMP, ESC/VP.net, PJLink

Advanced Features

Security
Kensington lock, Control panel lock, Password lock, Padlock, Wireless LAN security, Password protection
2D Colour Modes
Dynamic, Cinema, Presentation, sRGB, Blackboard, DICOM SIM
Other features
Arc Correction, Auto Calibration, Auto Power On, Built-in speaker, CEC compatible, Customizable user logo, Digital zoom, Direct Power on/off, Document Camera Compatible, Driverless installation, Dual Pen Support, Easy OSD pre-setting, Email notification, Finger-touch support, Fit to Screen, Freeze image, Image Shift, Instant on/off, Interactive, Interactive OSD menu, Mail notification function, Microphone input, Network administration, OSD copy function, spectextoptionfeaturesprojectorpcinteractive, PC free annotation, Projection App for Chromebook, Quick Corner, Schedule Function, Screen Mirroring, Screen share, Set-up wizard, Sliding split-screen feature, Split-Screen-Function, Super resolution, Web Control, Web Remote, Whiteboard sharing function, Wireless LAN capable, iProjection App, iProjecton set-up by QR code
Interactivity
Yes - pen and finger-touch
Video Color Modes
Blackboard, Cinema, Dynamic, Presentation, sRGB, DICOM SIM
Projector control
via: AMX, Crestron, Extron, Crestron (RS-232c only), Crestron Integrated Partner, Crestron RoomView, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol

General

Power consumption
366 Watt, 262 Watt (economy), 0.5 Watt (standby)
Heat Dissipation
1,244 BTU/hour (max)
Supply Voltage
AC 220 V - 240 V, 50 Hz - 60 Hz
Product dimensions
458‎ x 375 x 210 mm (Width x Depth x Height)
Product weight
9.3 kg
Noise Level
Normal: 36 dB (A) - Economy: 27 dB (A)
Supported Temperature
Storage -10° C - 60° C
Included Software
Easy Interactive Tools, iProjection
Options

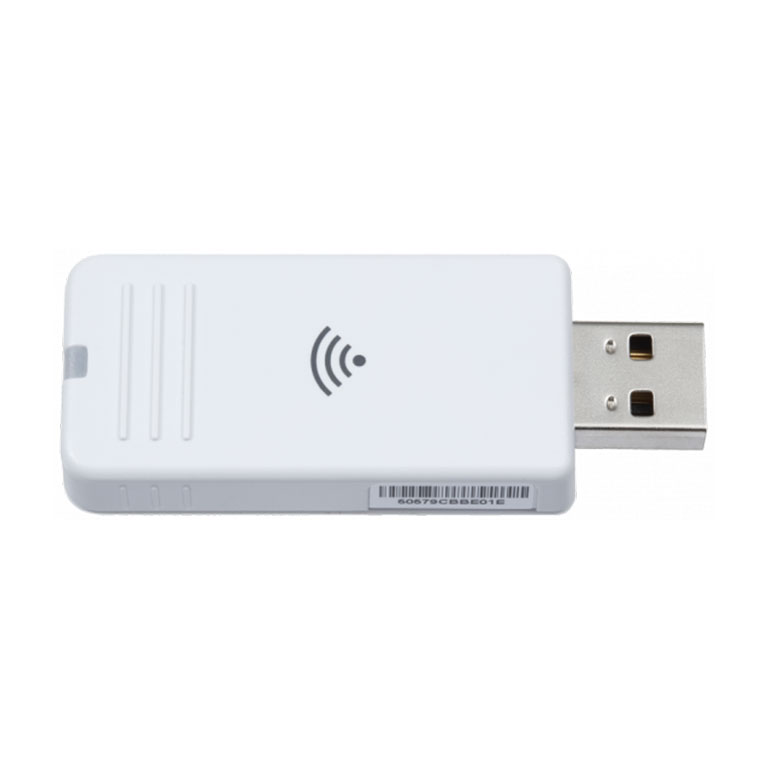

Document camera, External Speaker, Pen tip(Felt), Pen tip(Teflon), Wireless LAN unit
Compatible Operating Systems
Linux, Mac OS 10.10.x, Mac OS 10.7.x, Mac OS 10.8.x, Mac OS 10.9.x, Ubuntu 14.10, Ubuntu 15.04, Windows 10, Windows 10 (32/64 bit), Windows 2000
Loudspeaker
16 Watt, Stereo: Stereo
What's in the box

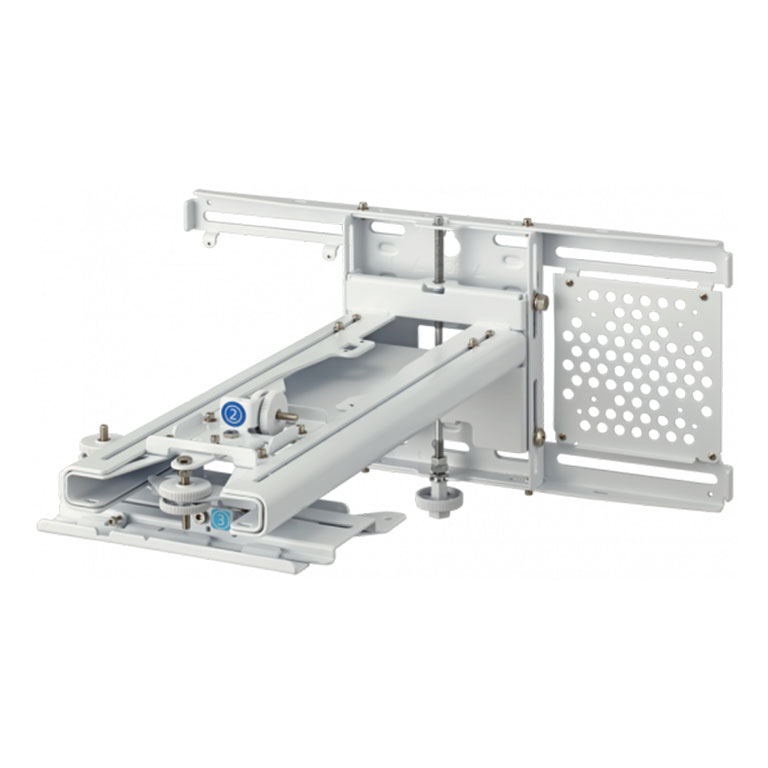

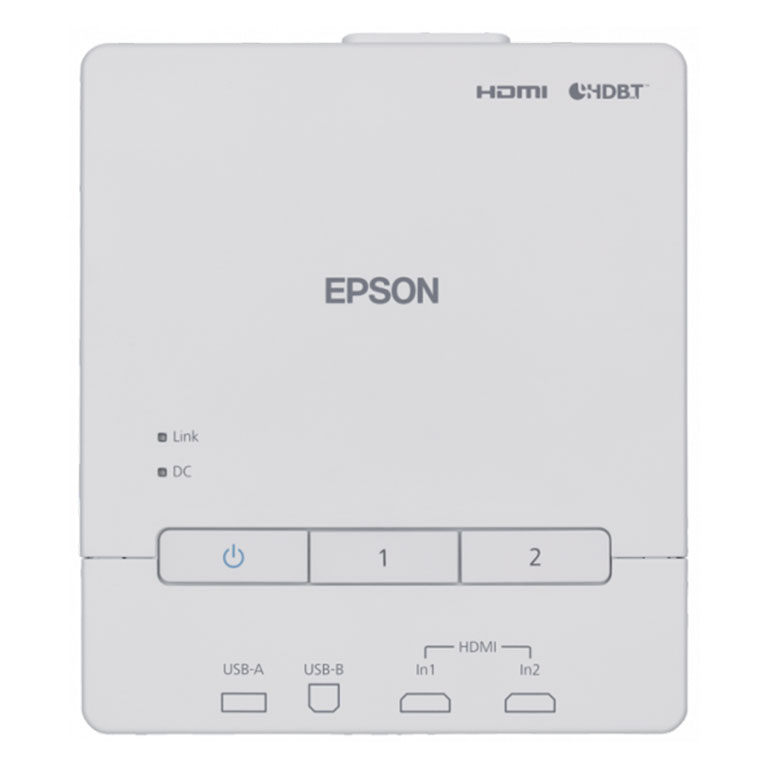

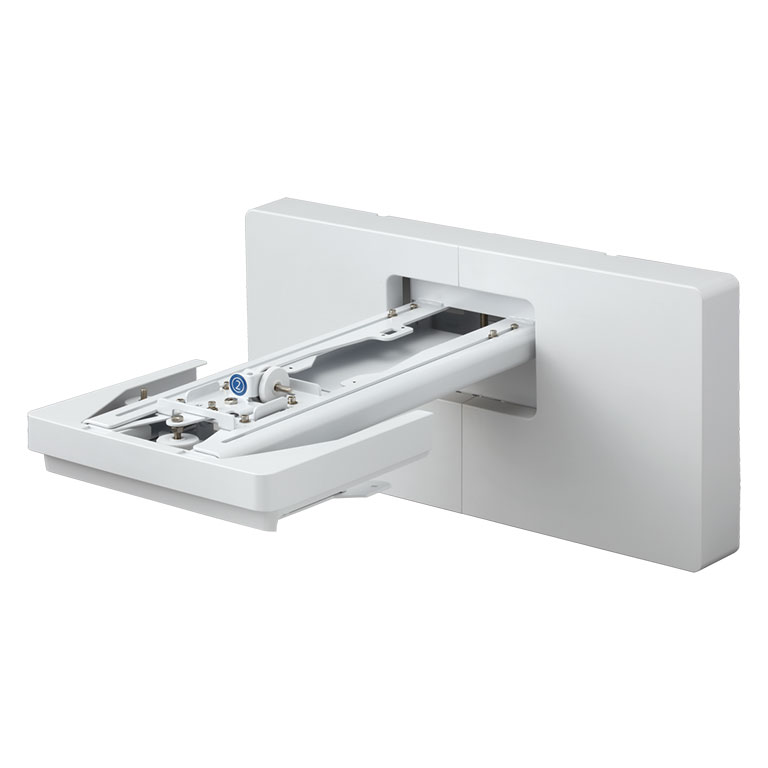

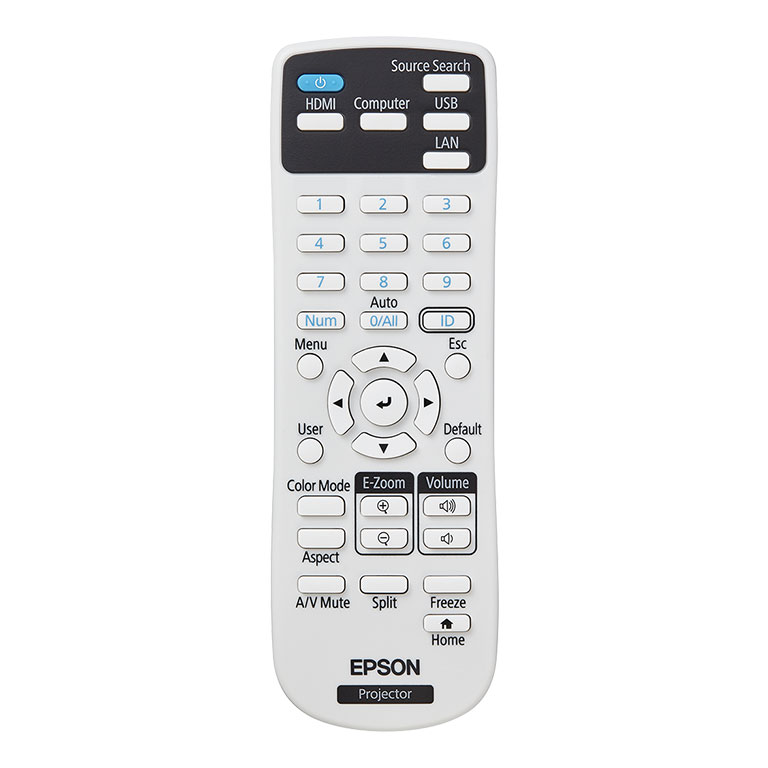

2 x Pen tip(Teflon), 4 x Pen tip(Felt), CD Manual, Cable cover, Control Box - HCB (HDBaseT Connection & Control Box), Finger touch unit, Interactive pens, Pen Holder/Stand, Power cable, Remote control incl. batteries, Replacement pen tips, Wall hanging bracket
Room Type / Application
Boardroom, Huddle space / Portable, Meeting room / Classroom
Positioning
Table Mounted, Wall Mounted
Colour
White

Accessories

No accessories listed
