Manufacturer: Extron Electronics

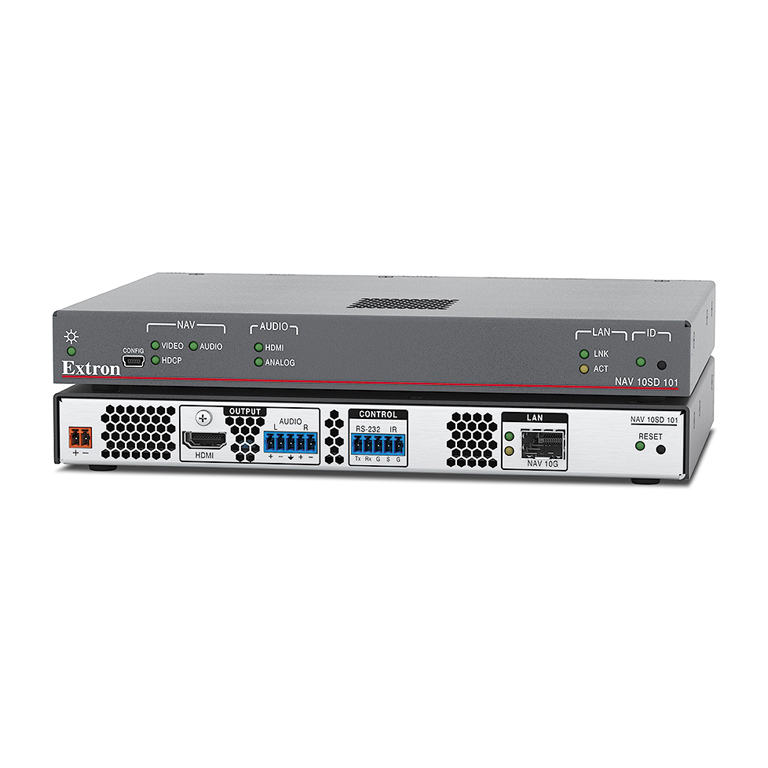

Decodes video and audio from 10 Gbps Ethernet networks
Supports HDMI 2.0 at resolutions up to 4K/60 @ 4:4:4
PURE3 Intelligent Selective Streaming
Interoperable with 1 Gbps NAV® endpoints
Ultra-low latency with visually lossless compression
Warranty: Extron Everlast Power Supply is covered by a 7‑year parts and labor warranty
Utilising Extron’s patented PURE3® codec, Extron NAV 10SD 101 delivers groundbreaking performance with real-time, visually lossless video at resolutions up to 4K @ 60 Hz with 4:4:4 chroma sampling and ultra-low latency. The NAV 10SD 101 is fully compatible with NAV® 1 Gbps endpoints, increasing scalability for large deployments. It also supports AES67 audio over IP, facilitating flexible integration with DMP 128 Plus DSPs or other IP-enabled audio components. Purpose-built to support demanding professional AV applications, the highly scalable and powerful NAV platform enables secure deployment of AV signals to thousands of endpoints.
The NAV 10SD 101 utilizes the Extron PURE3 codec, a unique wavelet-based compression technology that exceeds the performance characteristics found in standards-based compression systems. With virtually no latency, encoded video signals are processed with 4:4:4 color quantization, while maintaining original source quality and native resolution. PURE3 Intelligent Selective Streaming, or ISS, is an exclusive Extron streaming technology that leverages periods of low motion streamed content to enhance streaming performance. The PURE3 codec also features advanced error concealment, providing high immunity to network errors such as bit errors, jitter, and out-of-order or dropped data packets. PURE3 error concealment provides robust picture delivery without the increased latency or bandwidth typically introduced by forward error correction – FEC systems.
Designed for 10 Gbps Ethernet networks, the NAV 10SD 101 features the required bandwidth for visually lossless transmission of video and audio, ensuring accurate reproduction of original source content without any loss of detail or visible compression artifacts. Fiber optic connectivity enables extension of AV signals up to 10 km (6.21 miles) over singlemode cable or 400 m (1,312 feet) over multimode cable. Fiber optic connectivity is also inherently immune to outside interference, providing both robust and reliable transmission. The NAV 10SD 101 is ideal for simulation, command and control, medical diagnostics applications, or any installation where reliable, visually lossless AV over IP video distribution is desired.
The NAV 10SD 101 is fully compliant with HDCP 2.3 for transmission of UHD content encrypted with the HDCP standard. It also features Extron Key Minder® to enhance and simplify integration of HDMI-equipped devices. For HDMI signals with protected content, Key Minder authenticates and maintains continuous HDCP encryption to support quick and reliable transmission across a network infrastructure. If the HDCP-encrypted content is streamed to a non-compliant display, the receiver sends a full-screen green signal, providing an immediate visual feedback that the protected content cannot be viewed on the display.
The NAV platform supports the AES67 standard for transmission of audio over IP networks, facilitating integration with DMP 128 Plus DSPs or other IP-enabled audio components. The AES67 standard provides interoperability between products over IP protocols in use today. Use of this standard enables AV integrators to more easily add audio networking technology into a variety of applications, ensuring reliable performance and flexibility in the distribution of audio signals.
NAV systems are not limited to video extension and distribution. Multiple encoders and decoders can be deployed together to create an IP-based video and audio matrix. NAV Pro AV over IP solutions provide the flexibility of an IP-based system, with the integration-friendly video and audio switching features found in Extron conventional matrix switchers, such as Key Minder, EDID Minder®, and USB and audio breakaway. Design a small IP-based switching system with multiple endpoints and an Extron Pro Series control system for secure switching. In larger deployments, the NAVigator System Manager can enhance matrix switching capabilities, featuring advanced control and enterprise-level system monitoring.
Priority Routing enables users to create custom tags to ensure that data is properly segregated, and endpoints are more easily located. Users can assign multiple tags to an endpoint using NAVigator software. Used in conjunction with an Extron control system, tags can be leveraged to classify, segregate, or quickly locate endpoints. Priority Routing is useful in systems with multiple security classification levels or in applications that manage many rooms over an enterprise or campus.
The NAV 10SD 101 features a built-in, user-friendly web interface for easy access to network settings and other parameters from a standard web browser. In addition to the web interface, the NAV 10SD 101 supports configuration from Extron PCS – Product Configuration Software. Larger deployments will benefit from the optional NAVigator System Manager, a powerful, purpose-built appliance for centralized management and control of NAV systems.
The NAV 10SD 101 delivers computer and video resolutions at selectable output rates from 640×480 up to UHD 4096×2160. With its integrated Extron Vector™ 4K scaling technology, the NAV 10SD 101 delivers best-in-class image upscaling and downscaling using exclusive, high-precision processing algorithms for exceptional scaling performance. Selectable FILL and FOLLOW modes ensure proper output signal aspect ratio. FILL mode provides full screen output, while FOLLOW mode preserves the input signal’s original aspect ratio. Additionally, the HDMI output color space and chroma sampling can be set automatically to ensure compatibility with connected DVI or HDMI displays. With its support for a wide range of video resolutions, the NAV 10SD 101 ensures the optimal output resolution for your display, enhancing video performance and maximizing system compatibility.
The optional NAVigator System Manager turns any NAV system into a powerful and flexible IP-based matrix solution. NAVigator is a purpose-built hardware appliance with a user-friendly interface for centralized management and control of NAV deployments. It facilitates easy setup, configuration, and quick switching, and includes extensive features for monitoring, diagnostics, and troubleshooting. NAVigator also facilitates bulk firmware upgrades and simultaneous configuration, backup, and restoration of multiple units from a single access point. In addition, NAVigator is designed to integrate directly with Extron Pro Series control systems, which feature a Secure Platform Interface that encrypts all commands from control processor to endpoint.
NAV endpoints support 802.1X port-based Network Access Control. When applied, 802.1X authentication requires that all devices are approved before network access is granted. Support for Microsoft® Active Directory simplifies user management and group authentication, helping to maintain strong security policies. Furthermore, SRTP – Secure Real-Time Transport Protocol ensures encryption, message authentication, and data integrity of video and data streams. NAV systems work natively with Extron Pro Series control systems, which feature a Secure Platform Interface that encrypts all commands from control processor to endpoint. Together, NAV and Extron Pro Series control systems create the most secure and reliable Pro AV over IP solution on the market. Furthermore, when used with the optional NAVigator System Manager, all communication between the manager and endpoints is encrypted with SSH – Secure Shell protocol. Due to the nature of fiber optic transmission, NAV 10G systems are inherently immune to electromagnetic and radio frequency interference, making them to be ideal for highly sensitive, secure environments. The highly secure NAV 10SD 501 is an ideal solution for government, military, and medical environments.
All NAV endpoints have a built-in Pro Series control port for RS‑232 and IR, effectively expanding Extron Pro Series control systems beyond the physical location of the control processor. This unique Extron feature eliminates the need for additional control processors at the endpoints. NAV Pro Series control ensures cost-effective, encrypted control of devices anywhere the network can reach. NAV is an ideal solution for any application requiring device control, flexible video and audio switching, and reliable transmission of high-quality content over long distances.
The NAV platform is the only solution featuring seamless, complete interoperability between 1 Gbps and 10 Gbps encoders and decoders. NAV leverages the PURE3 codec, making it possible to stream video from 1 Gbps encoders to 10 Gbps decoders or reduce bitrates from 10 Gbps encoders so that streams can be readily decoded by 1 Gbps decoders. This flexibility ensures reliable delivery of superior quality video with ultra-low latency across your entire enterprise.
Decodes video and audio from 10 Gbps Ethernet networks — Ultra-high speed 10 Gbps Ethernet supports flexible system design for future-ready high bandwidth transmission over large distances.
Supports HDMI 2.0 at resolutions up to 4K/60 @ 4:4:4 — HDMI up to 4K @ 60Hz (4096 x 2160) with full 4:4:4 chroma subsampling ensures accurate reproduction of source images with no loss of detail.
PURE3® Codec — Extron’s patented wavelet-based compression technology that delivers high image quality with very low‑latency at highly efficient bit rates. With its high immunity to network errors and built-in error concealment, PURE3 facilitates reliable, real-time delivery of visually lossless video over IP networks.
PURE3 Intelligent Selective Streaming — ISS - Intelligent Selective Streaming leverages low motion content to achieve extremely low bitrates while maintaining visually lossless performance.
Interoperable with 1 Gbps NAV® endpoints — Supports transmission of lower bitrate video to 1 Gbps decoders in mixed 1 Gbps/10 Gbps solutions.
Ultra-low latency with visually lossless compression — Decodes and scales professional-grade video with ultra-low latency using Extron’s unique wavelet-based PURE3® codec, guaranteeing exceptional user experience and response time in mission critical applications.
Advanced Extron Vector™ 4K scaling technology — Vector 4K scaling technology ensures critical-quality 4K imagery, with best in class image upscaling and downscaling, enhanced color accuracy, and picture detail.
AES67 audio support — Supports the AES67 audio over IP standard, providing compatibility with Extron and third-party DSP processors.
HDCP 2.3 compliant — Ensures display of content-protected media and interoperability with other HDCP-compliant devices.
Industry-standard LC connectors for fiber optic connectivity provide robust, reliable transmission with inherent immunity to outside interference — Features immunity to RMI/RFI noise and optical isolation over singlemode or multimode fiber optic cabling. Can extend AV and control signals up to 10 km when using singlemode fiber.
WindoWall® Mode supports videowall applications — NAV scaling decoders support videowall applications using Extron’s WindoWall processing, enabling a mix of full screen and image magnification across multiple displays. WindoWall presets provide a quick and easy way to manipulate the videowall canvas between different image arrangements.
Customizable Screen Saver — Displays a user-supplied custom image, black screen, blue screen, or the last video frame when no active video signal or stream is present.
SRTP stream encryption — SRTP - Secure Real-Time Transport Protocol ensures encryption, message authentication, and data integrity for video and data streams.
Priority Routing — Assign custom tags to end points using NAVigator software. Tags can be used to further classify endpoints, easily locate them on the network, or apply rules for routing with an Extron control system.
802.1X port-based Network Access Control — Supports 802.1X port-based authentication, requiring that all devices are approved before network access is granted.
Active Directory support — Integrates with Microsoft® Active Directory, simplifying user management, group authentication, and helping to maintain strong security policies.
Error concealment — Offers high immunity to network errors, ensuring reliable transmission of high quality imagery with the ability to conceal errors even during incidents of heavy packet loss.
Embedded web interface — Intuitive, user-friendly embedded web interface simplifies device configuration, setup, and system operation.
EDID Minder® automatically manages EDID communication between connected devices — EDID Minder ensures that all sources power up properly and reliably output content for display.
Key Minder® continuously verifies HDCP compliance for quick, reliable switching — Key Minder authenticates and maintains continuous HDCP encryption between input and output devices to ensure quick and reliable switching in professional AV environments, while enabling simultaneous distribution of a single source signal to one or more displays.
HDCP Visual Confirmation — When HDCP‑encrypted content is transmitted to a non‑HDCP compliant display, a full‑screen green signal is sent to the display for immediate visual confirmation that protected content cannot be viewed on that display.
Supports analog and embedded HDMI audio signals — Directly interfaces with common AV source signals for compatibility with most audio devices.
Compatible with Show Me cables — Show Me cables and Retractors provide convenient connectivity, user input selection, and control of AV systems.
Integrates with Pro Series control systems for secure, user-friendly external control — Designed to integrate directly with Extron Pro Series control systems for secure, encrypted RS‑232 and IR control of external devices without the need for additional control processors.
CEC – Consumer Electronics Control capability — CEC commands can be triggered to control displays or other AV devices connected over HDMI.
Secure Platform Interface — Working natively with NAV Systems, Extron Pro Series control systems offer flexible system management and matrix switching control via a Secure Platform Interface that encrypts all commands from control processor to endpoint. Together, NAV and Extron Pro Series control systems create the most secure and reliable Pro AV over IP solution on the market.
Multicast filtering with IGMPv3 — Supports multicast filtering with IGMPv3 for lower bandwidth consumption. Enables use of standard network equipment.
One-button endpoint identification — Identify endpoints with an ID button and indicator for quick discovery of units on a network, simplifying diagnostics and installation.
External Extron Everlast™ power supply included — Provides worldwide power compatibility with high‑demonstrated reliability and low power consumption
1" (2.5 cm) high, half rack width metal enclosure — Compact, low profile enclosure for discreet placement and concealment.
ZipClip® 400 included — Enables quick and secure mounting to rack rails, tables, shelves, and lecterns.
