Description

LG Video Wall Display VH7E Artistic Immersion, Overwhelming Captivation

The LG Video Wall Display VH7E impressive immersion is generated by the extremely narrow 0.9mm bezel so that it becomes even more powerful which a state-of-the-art smart signage platform. Beyond the self-playing features, the VH7E series is capable of multi-tasking that rises brand awareness, drives traffic to your store, and engages customers in brand storytelling, all while providing user convenience with a simplified and more intuitive UL.

Achieving Incredible Immersion

  • Seamless Large Screens with Extreme-Narrow Bezel
  • Image Gap Reduction

Vivid and Dynamic Picture Quality

  • Higher Viewing Angle
  • Wider Viewing Angle

Powerful Smart Signage Platform

  • High Performance and Great Scalability
  • Flexible Content Creation

User-Friendly Smart Signage UX

  • Intuitive Menu Structure
  • Dedicated GUI for Portrait Orientation

User Convenience

  • Easy Colour Adjustment
  • Simple White Balance Adjustment

User Convenience

  • LAN Daisy Chain Management
  • Real-Time Care Service

Features

Achieving Incredible Immersion

Seamless Large Screens with Extreme-Narrow Bezel

The borderless design, with its 0.9 mm* even bezel and 1.8 mm* BtB (Bezel to Bezel), verified by Nemko, minimizes bezel interference and delivers immersive and seamless content on assembled video wall screens.

* The 0.9mm even panel bezel and 1.8mm BtB size (borderless type, no metal bezel) have been verified by Nemko, a global institution that tests and certifies electrical equipment.

Image Gap Reduction

The VH7E series includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.

* The "Conventional" refers to displays which do not include an image improvement algorithm.

Vivid and Dynamic Picture Quality

Higher Viewing Angle

Large screens are usually positioned higher than human-eye level, making uniform picture quality essential for video walls. The viewing angle of the VH7E series is high enough to display vivid colours throughout the screen with no distortion.

Wider Viewing Angle

It is well known that LG IPS panel technology provides better control of liquid crystals, which in turn allows the screen to be viewed at virtually any angle. Thereby, the VH7E series captivates the attention of more viewers with lifelike colours, regardless of their viewing position.

Powerful Smart Signage Platform

High Performance and Great Scalability

Thanks to its built-in SoC and webOS smart signage platform, the VH7E series can execute several tasks at once while providing smooth content playback without the need for a media player. As webOS supports HTML5 as a web-based platform and offers SDK(Soft Development Kit), it is even easier for SIs to build and optimize their web apps.

Flexible Content Creation

Four different videos can be played simultaneously via web apps, and various animation effects, such as scaling or rotating, are added to content using CSS(Cascading Style Sheets) transition effects. Real-time streaming* is also available, providing the flexibility to organize and diversify content free from capacity limits.

* Supported protocols : RTSP, RTP, HLS, UDP Multicast

User-Friendly Smart Signage UX

Intuitive Menu Structure

The menu structure has been optimized for commercial use. It simplifies approach flows and groups similar functions together, adopting a more intuitive GUI for ease of use. This way, users can avoid having to do trial-and-error when exploring desired functions and managing displays.

Dedicated GUI for Portrait Orientation

LG Video Wall Display VH7E Features

The conventional GUI(Graphic User Interface) was designed based on landscape-oriented consumer TV usage, so OSD(On Screen Display) wasn’t well-suited for screens in portrait mode. The OSD of the VH7E series, however, consists of a long range menu with bigger font sizes and a 9:16 ratio, creating a comfortable and efficient business environment.

User Convenience

Easy Colour Adjustment

Depending on the content, the colour temperature of the display can be easily adjusted in increments of 100K using a remote control.

Simple White Balance Adjustment

In conventional video walls, white balance was adjustable only in “full-white” mode, but the VH7E series allows you to modify each value of grey scale to achieve more detailed and precise white balance adjustment.

User Convenience

LAN Daisy Chain Management

A LAN daisy chain allows you to execute commands to control and monitor video walls and even update their firmwares at once.

Real-Time Care Service

The maintenance gets easier and faster with an optional service Signage365Care*, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of a client’s business.

* The availability of “Signage365Care” service can differ by region, so please contact the LG sales representative in your region for further details.

Specifications


LG Video Wall Display VH7E Specifications

PANEL

Screen Size 55"
Native Resolution 1,920 x 1,080 (FHD)
Brightness(Typ.,cd/m²) 700
Contrast Ratio 1,400:1
Dynamic CR 500,000 : 1 (The luminosity ratio of Full Black/Full White color on video input condition.)
Viewing Angle (H x V) 178 x 178
Surface Treatment Haze 3%
Life Time (Typ.) 60,000 Hrs
Operation Hours 24 Hrs
Orientation Landscape & Portrait

CONNECTIVITY

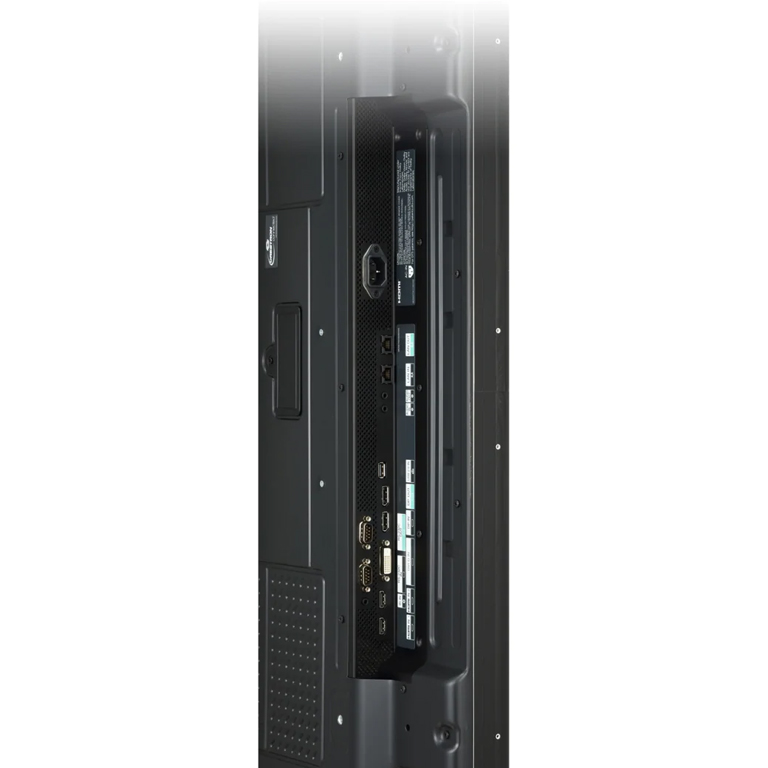

Input HDMI (2), DP, DVI-D, Audio, USB 2.0
Output DP, Audio
External Control RS232C In/out, RJ45(LAN) In/out, IR In

MECHANICAL SPECIFICATION

Bezel Width 0.9 mm (Even), B to B 1.8 mm
Monitor Dimension (W × H × D) 1,211.4 x 682.2 x 86.5 mm
Weight (Head) 18.6 kg
Carton Dimensions (W × H × D) 1,353 x 855 x 263 mm
Packed Weight 25.3 kg
VESA™ Standard Mount Interface 600 x 400 mm

ENVIRONMENT CONDITIONS

Operation Temperature 0°C to 40°C
Operation Humidity 10 % to 80 %

POWER

Power Supply 100-240V~, 50/60Hz
Power Type Built-In Power

POWER CONSUMPTION

Typ. 220 W
Max. 260 W
Smart Energy Saving 110 W

CERTIFICATION

Safety CB / NRTL
EMC FCC Class "A" / CE / KC

MEDIA PLAYER COMPATIBILITY

OPS type compatible Yes (Piggyback)

SOFTWARE COMPATIBILITY

Content Management Software SuperSign CMS
Control and Monitoring Software SuperSign Control/Control+

ACCESSORY

Basic Remote Controller, Power Cord, RS232C Cable, LAN Cable, DP Cable, IR Receiver, Guide Bracket, Screws, Manual
Optional Wall Mount (Landscape : WM-L640V, Portrait : WM-P640V), OPS Kit(KT-OPSF)
