Description

Warranty: 3 year warranty

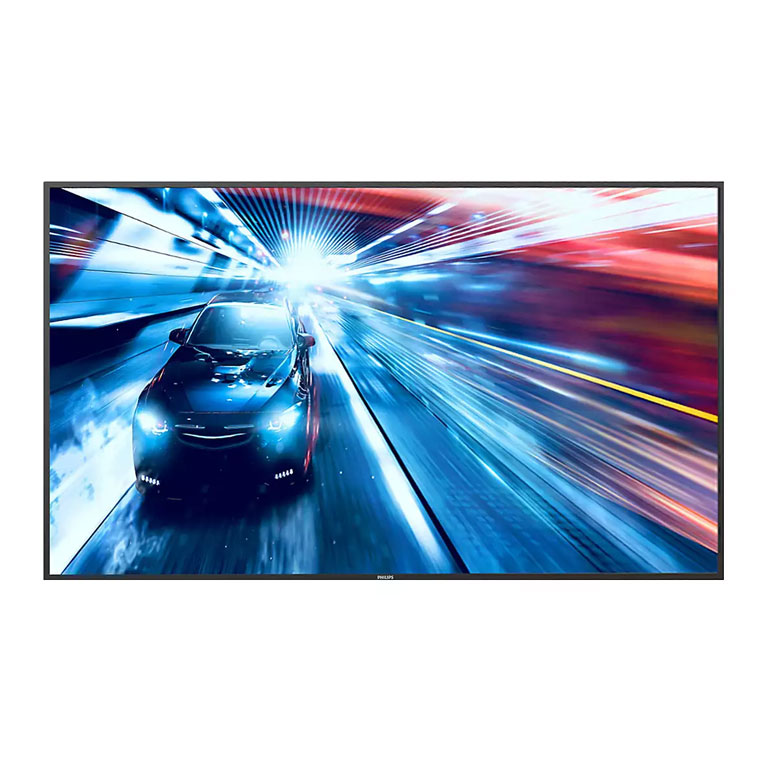

Philips Signage Solutions Q-Line will intensify your signage experience

Philips Signage Solutions Q-Line delivers startlingly clear images in a more eco-friendly way. High on performance and reliability, yet low on power consumption, it is ideal for projects where no compromise is accepted.

  • Optimized for public viewing
  • Innovative solutions for any signage application
  • Run your own app or choose your favourite app to run
  • Manage settings of multiple displays with CMND & Control
  • Schedule what you want, when you want with SmartPlayer
  • Connect and control your content via the cloud with HTML5
  • Care about you, your business and your audience
  • SmartPower for energy saving

Features

Philips Signage Solutions Q-Line Features

Optimized for public viewing

4K Ultra HD: resolution like you've never seen it before

Innovative solutions for any signage application

Android: Run your own app or choose your favorite app to run
CMND: Take control of your displays
Create and update content with CMND & Create
Schedule what you want, when you want with SmartPlayer
Connect and control your content via the cloud with HTML5

Care about you, your business and your audience

Manage settings of multiple displays with CMND & Control
SmartPower for energy saving

CMND: Take control of your displays

A robust display management platform, CMND puts the power back into your hands. Update and manage content with CMND & Create or control your settings with CMND & Control. It's all possible with CMND.

Manage settings of multiple displays with CMND & Control

With CMND & Control, easily manage multiple displays in a central location. With real time display monitoring, setting and software updates from a remote location, and the ability to customise and configure multiple displays at once, such as video wall or menu board displays, controlling your suite of displays has never been easier.

Schedule what you want, when you want with SmartPlayer

Turn your USB into a true cost-effective digital signage device. Simply save your content (video, audio, pictures) on your USB and plug into your display. Create your playlist and schedule your content via the on-screen menu, and enjoy your own playlists anytime, anywhere.

Keep your content up and running with FailOver

Keeping your content up and running is critical for demanding commercial applications. While it is unlikely you will face a content disaster, FailOver provides content protection with a revolutionary technology that plays back-up content on screen in the event of a media player failure. FailOver automatically kicks in when the primary input fails. Simply select a primary input connection and a FailOver connection and you're ready for instant protection.

SmartPower for energy saving

The backlight intensity can be controlled and pre-set by the system to reduce the power consumption by up to 50%, which saves substantially on energy costs.

Connect and control your content via the cloud with HTML5

Connect and control your content via the cloud with the integrated HTML5 browser. Design your signage content online and connect it with a display or with your entire network. Simply plug in a RJ45 Internet cable for network connection and connect the display with the dedicated URL address, and you are ready to play your cloud-based content.

Simplify meetings with FailOver for conferencing

Using FailOver, simplify your presentations and video conferencing. When a meeting or conference room is not in use, background content can run from whatever input source you choose. When the meeting starts and you need to share a presentation or your screen, simply connect your computer and the display automatically switches inputs and shows what's on your screen, with no need to manually switch inputs.

Full HD LED for brilliant images with incredible contrast

Picture Quality matters. Standard displays deliver quality, but you expect more. Imagine crisp detail paired with high brightness, incredible contrast and realistic colours for a true-to-life picture.

Create and update content with CMND & Create

Design and create compelling content with CMND & Create, a powerful authoring tool. With a drag-and-drop interface, preloaded templates and integrated widgets, you'll be able to amaze your customers with compelling content.

Specifications


Download Specifications Sheet

Philips Signage Solutions Q-Line Specifications

Display

Display number of colours 1.073 billion colors
Touchscreen No
Display type LED
Display diagonal 163.8 cm (64.5")
Display resolution 3840 x 2160 pixels
Display brightness 350 cd/m²
HD type 4K Ultra HD
Response time 8 ms
Contrast ratio (typical) 4000:1
Viewing angle, horizontal 178°
Viewing angle, vertical 178°
Pixel pitch 0.372 x 0.372 mm
Display diagonal (metric) 163.9 cm
Panel life 50000 h
Supported video modes 480i,480p,576i,576p,720p,1080i,1080p,2160p
Supported graphics resolutions 640 x 480 (VGA),720 x 400,800 x 600 (SVGA),1024 x 768 (XGA),1280 x 1024 (SXGA),1280 x 768 (WXGA),1280 x 800 (WXGA),1360 x 768 (WXGA),1600 x 1200 (UXGA),1920 x 1080 (HD 1080)
Noise reduction Yes
Native aspect ratio 16:9

Ports & interfaces

Remote (IR) output 1
Remote (IR) input 1
USB port Yes
AUX in Yes
RS-232C Yes
PC Audio in Yes
DisplayPorts quantity 1
Compatible memory cards MicroSD (TransFlash)
Card reader integrated Yes
Ethernet LAN Yes
HDMI ports quantity 4
DVI port No
VGA (D-Sub) input ports 1
Audio (L/R) out 1
Ethernet LAN (RJ-45) ports 1
RS-232 interface Yes
USB version 2.0
USB ports quantity 2

Audio

Number of built-in speakers 2
RMS rated power 20 W
Noise reduction Yes
Built-in speaker(s) Yes

Design

Design Digital signage flat panel
Placement supported Indoor
Orientation Horizontal
Bezel width (top) 1.39 cm
Bezel width (side) 1.39 cm
Bezel width (bottom) 1.49 cm
Product colour Black
Certification BSMI, CB, CCC, CE, EAC, EMF, FCC, Class B, PSB, UL/cUL
VESA mounting Yes

Performance

Purpose Universal
On Screen Display (OSD) languages Arabic, Simplified Chinese, Traditional Chinese, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Norwegian, Polish, Portuguese, Russian, Swedish, Turkish
On Screen Display (OSD) Yes
Number of OSD languages 19
Panel life 50000 h

Power

Power consumption (typical) 110 W
Power consumption (standby) 0.5 W
AC input voltage 100 - 240 V
AC input frequency 50 - 60 Hz
Energy Star certified Yes

Computer system

Processor cores 4
Operating system installed Android 5.1
Internal memory 2 GB
User memory 8 GB
Video formats supported ASF,AVI,DAT,FLV,MKV,MOV,MP4,MPEG,MPG,TRP,TS,VOB,WEBM,WMV
Audio formats supported AAC,M4A,MP3,WMA
Image formats supported BMP,JPEG,JPG,PNG

Weight & dimensions

Width 1458.7 mm
Depth 81.6 mm
Height 834.7 mm
Weight 24.8 kg

Packaging content

Quick start guide Yes
Batteries included Yes
Handheld remote control Yes
Cables included AC,HDMI,IR sensor,RS-232

Operational conditions

Operating altitude 0 - 3000 m
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 20 - 80%
Storage temperature (T-T) -20 - 60 °C
Storage relative humidity (H-H) 10 - 90%

Certificates

Energy Star certified Yes
Certification BSMI, CB, CCC, CE, EAC, EMF, FCC, Class B, PSB, UL/cUL

Technical details

VESA mounting Yes
Compatible operating systems Android 5.1

Accessories included
RS232 daisy-chain cable
USB Cover and screw x 1
RS232 daisy-chain cable
USB Cover and screw x1

Video in
VGA (Analogue D-Sub)
DisplayPort (1.2)
HDMI (x4)
USB 2.0 (Type A) (x2)
VGA (Analog D-Sub)
DisplayPort (1.2)
HDMI (x4)
USB 2.0 (Type A) (x2)

Power requirements
100 ~ 240 VAC, 50 ~ 60 Hz
100 ~ 240 VAC, 50 ~ 60 Hz

Signal loop through
RS232
IR Loop through
RS232
IR Loopthrough

Regulatory Approvals
BSMI
CB
CCC
CE
EAC
EMF
EnergyStar 7.0
FCC, Class B
PSB
UL/cUL

Picture enhancement
3/2 - 2/2 motion pull down
3D Combfilter
Progressive scan
3D MA deinterlacing
Dynamic contrast enhancement
Colour Enhancement
Colour Temperature Adjustment
De-interlacer
Noise Reduction
Smart Picture
3/2 - 2/2 motion pull down
3D Combfilter
Progressive scan
3D MA deinterlacing
Dynamic contrast enhancement
Color Enhancement
Color Temperature Adjustment
De-interlacer
Noise Reduction
Smart Picture

Keyboard control Lockable

I/O ports
AC-out
Analogue (D-sub input)
Analogue audio Left/Right out
Display Port
HDMI
IR out
micro SD
OPS
PC Audio in
RS232 Serial
USB 2.0
USB power outlet (5 V. 2 amp)
AC-out
Analog (D-sub input)
Analog audio Left/Right out
Display Port
HDMI
IR out
micro SD
OPS
PC Audio in
RS232 Serial
USB 2.0
USB power outlet (5 V. 2 amp)

Energy saving functions Smart Power

Additional accessories
AC Power Cord
RS232 cable
Batteries for remote control
Quick start guide
Remote Control
HDMI cable
IR sensor cable (1.8 M)
AC Power Cord
RS232 cable
Batteries for remote control
Quick start guide
Remote Control
HDMI cable
IR sensor cable (1.8M)

USB playback video formats
ASF
AVI
DAT
FLV
MKV
MOV
MP4
MPEG
MPG
TRP
TS
VOB
WEBM
WMV

USB playback image
BMP
JPEG
JPG
PNG

USB playback audio formats
AAC
M4A
MP3
WMA

Tiled Matrix Up to 10 x 15

Optional accessories
Tabletop stand
Table top stand

Display resolution at frequency
3840 x 2160 @ 60 Hz
3840 x 2160 @ 60 Hz

Internal memory
2 GB DDR3
8 GB eMMC
2GB DDR3
8GB eMMC

Thin Client

Operating system installed Android 5.1
Internal memory 2 GB
User memory 8 GB
Video formats supported ASF,AVI,DAT,FLV,MKV,MOV,MP4,MPEG,MPG,TRP,TS,VOB,WEBM,WMV
Audio formats supported AAC,M4A,MP3,WMA
Image formats supported BMP,JPEG,JPG,PNG

Packaging data

Quick start guide Yes
Batteries included Yes
Handheld remote control Yes
Cables included AC,HDMI,IR sensor,RS-232

Other features

Compatible operating systems Android 5.1
Accessories included RS232 daisy-chain cable
USB Cover and screw x 1
RS232 daisy-chain cable
USB Cover and screw x1
Video in VGA (Analogue D-Sub)
DisplayPort (1.2)
HDMI (x4)
USB 2.0 (Type A) (x2)
VGA (Analog D-Sub)
DisplayPort (1.2)
HDMI (x4)
USB 2.0 (Type A) (x2)
Power requirements 100 ~ 240 VAC, 50 ~ 60 Hz
100 ~ 240 VAC, 50 ~ 60 Hz
Operating altitude 0 - 3000 m
Mounting Landscape
Compatible memory cards MicroSD (TransFlash)
Card reader integrated Yes
Bezel width (top) 1.39 cm
Bezel width (side) 1.39 cm
Bezel width (bottom) 1.49 cm
Audio output Audio Left/Right (RCA)

Accessories

No accessories listed
