Description

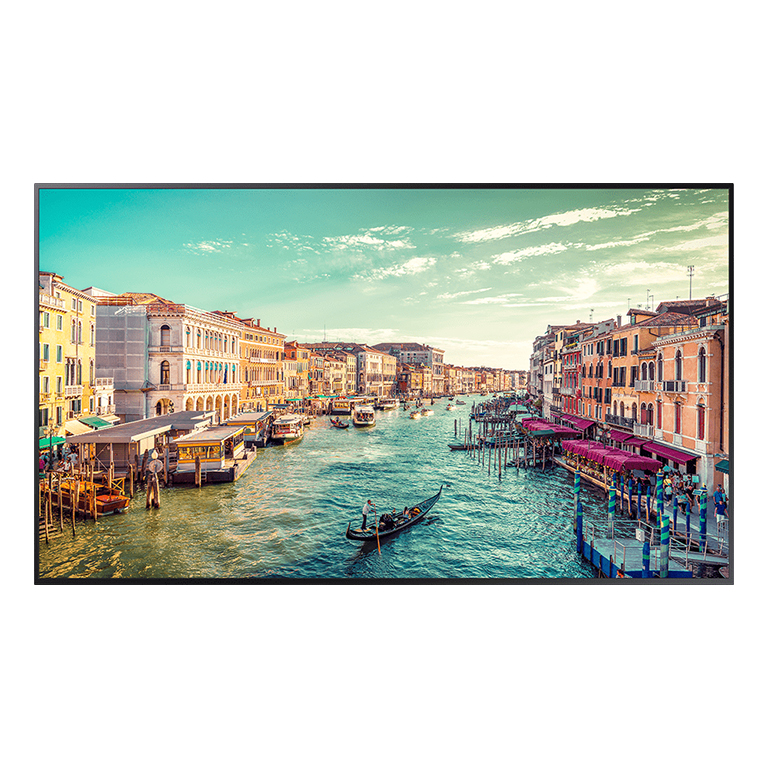

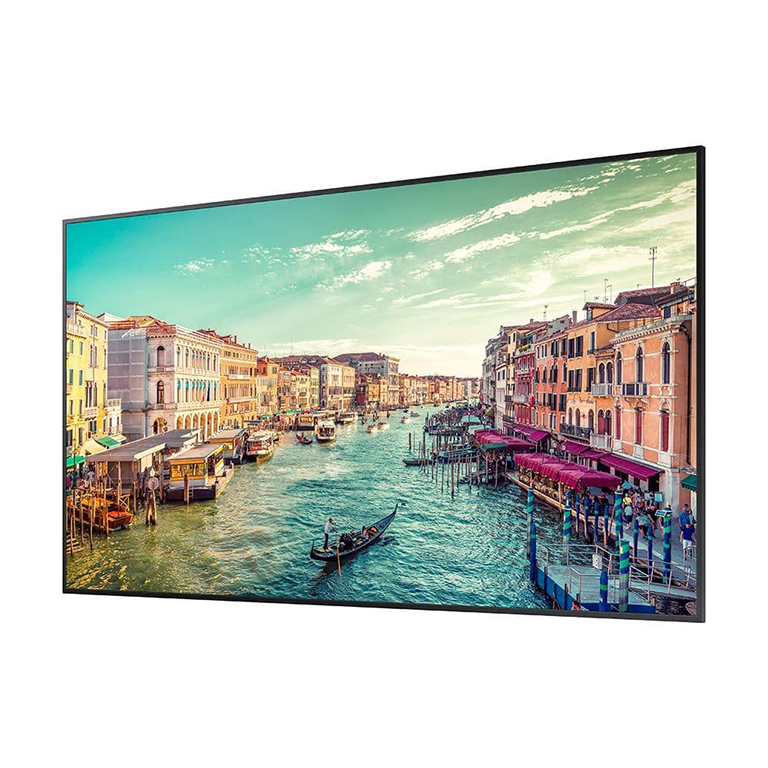

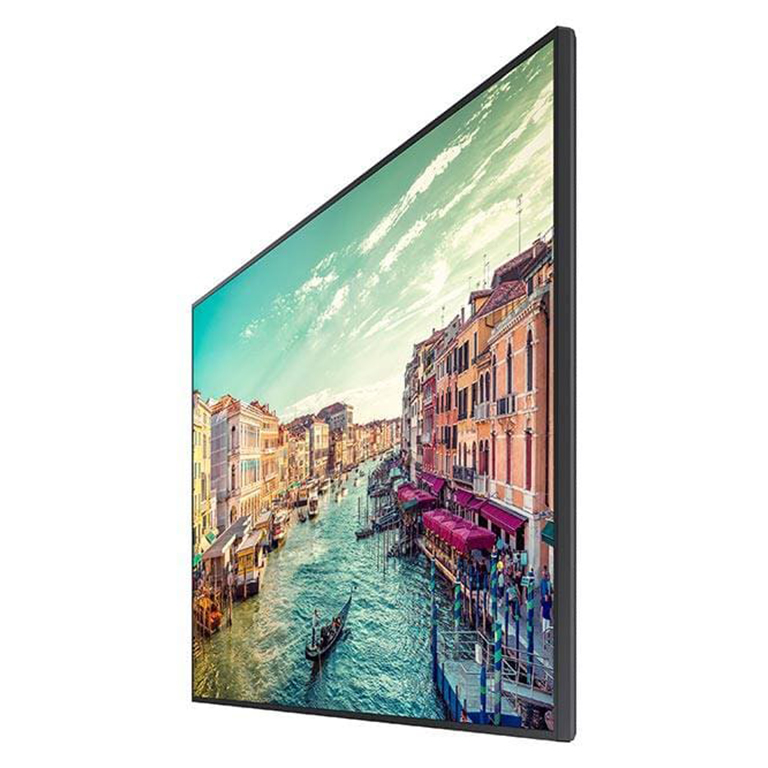

Time to upscale to your Samsung QM65R Digital Signage LED 4K display

Samsung QM65R Digital Signage cut through the clutter to deliver best-in-class UHD resolution as well as intelligent UHD upscaling and rich flawless colours with Dynamic Crystal Colour all in a slim design.

Samsung’s new QMR series provides ultra high-definition 4K resolution, creating lifelike images with sharper picture quality than ever before.

  • Incredible 4K picture quality
  • Crystal Processor 4K
  • Intelligent UHD upscaling
  • Dynamic Crystal Display
  • Perfect view with non-glare display
  • Slim and symmetrical design
  • Clean cable management
  • Powerful, all-in-one solution
  • WiFi and Bluetooth built-in
  • Industry standard certificate

Features

Samsung QM65R Digital Signage Features

Incredible 4K picture quality

Samsung’s new QMR series provides ultra high-definition 4K resolution, creating lifelike images with sharper picture quality than ever before.

Crystal Processor 4K

Intelligent UHD upscaling technology, made possibly by Samsung’s Crystal Processor 4K, allows content developed at a lower resolution to be elevated to UHD-level quality. It also performs edge restoration and noise reduction to optimize on-screen text and imagery.

Dynamic Crystal Display

The QMR series features Dynamic Crystal Display, using 10 bit processing for flawless color expression, allowing viewers to enjoy a wider spectrum of colors up to one billion shades. HDR+ compatibility converts standard definition content to HDR quality for sharper contrast and more vivid colors.

Intelligent UHD upscaling

Samsung’s cutting-edge intelligent UHD upscaling technology performs edge restoration and noise reduction to deliver perfect UHD picture quality even with lower resolution content. This “future-proof” solution ensures best-in-class picture quality regardless of the original content resolution.

Dynamic Crystal Colour

Samsung 64.5" LED 4K Ultra HD Digital Signage features Dynamic Crystal Colour, using 10 bit processing for flawless colour expression, allowing viewers to enjoy a wider spectrum of colours up to one billion shades. HDR+ functionality converts standard definition content to HDR quality for sharper contrast and more vivid colours.

Perfect view with non-glare display

The QMR series features reliable, non-glare panels that provide better visibility from all angles, anytime of day allowing businesses to deliver accurate information 24/7 in locations where clear and accurate information is crucial such as airports and commuter stations.

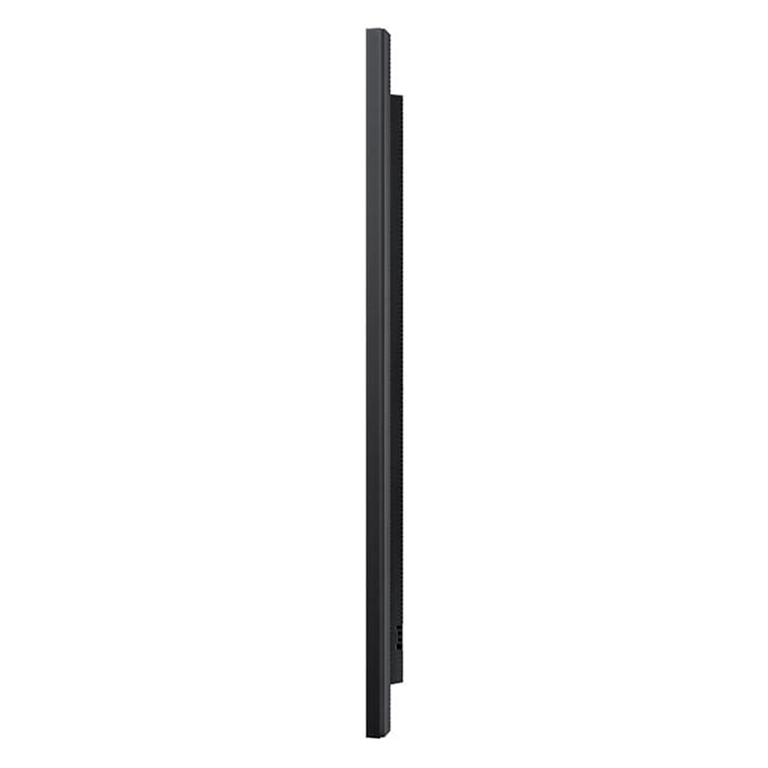

Slim and symmetrical design

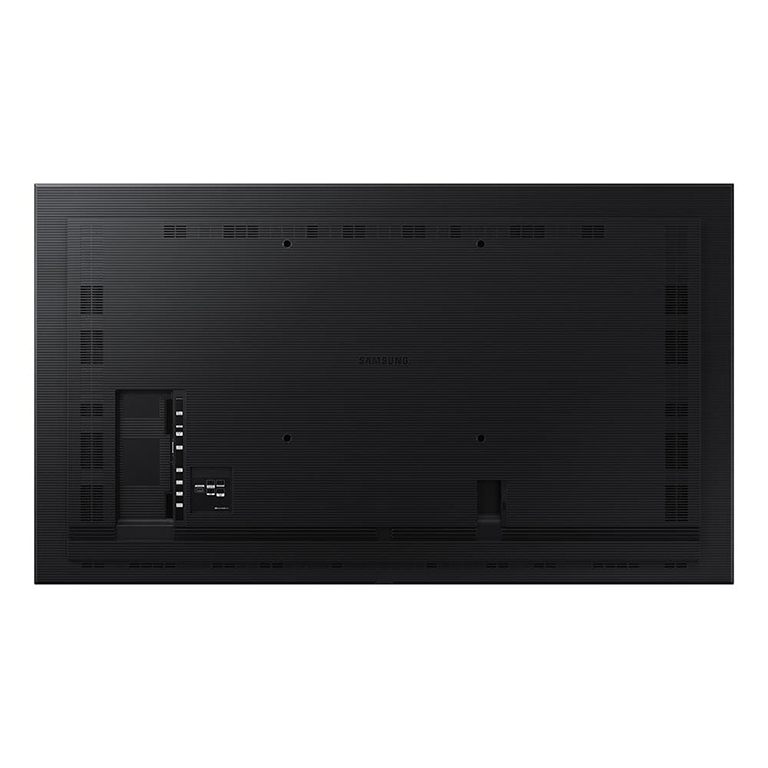

The QMR series features an all-new symmetric design simplifying wall mounting and ensuring installation is seamless. The flat back and slim depth will ensure a display that will stand the test of time.

Clean cable management

With QMR's new cable guide feature, retailers are able to tuck away messy cables from view. This allows for a clean and visually-appealing shopping experience for customers, even when the back of the display is visible.

Powerful, all-in-one solution

SSSP is an all-in-one solution that simplifies installation and maintenance. With Tizen 4.0, businesses can enjoy easy development, reinforced capability with multiple web formats and standards and secured protection.

Samsung Workspace secured by Knox

With security provided by Knox, the displays feature Samsung Workspace which supports wireless cloud service access and control of a PC without needing a physical connection. Samsung Workspace simplifies meeting spaces while also improving security.

WiFi and Bluetooth built-in

Built-in WiFi and Bluetooth allow for more personalised and interactive services as well as simplifying how businesses showcase content. Whether it’s to make networking simpler or enabling interactive beacon technology in-store, QMR series displays help businesses move into the future of retail.

Industry standard certified

The QMR series guarantees dependable functionality and is environmentally sustainable. Electromagnetic compatibility (EMC) class B compliant, meeting strict safety and reliability standards for operation, the displays are also registered by EPEAT, the global ecolabel for IT.

Specifications


Download Specifications Sheet

Samsung QM65R Digital Signage Specifications

Display

Dynamic contrast ratio marketing name Mega Contrast
Display number of colours 16.78 million colors
LED backlighting type Edge-LED BLU
Touchscreen No
Active display area (W x H) 1428.48 x 803.52 mm
Colour gamut 92%
Display type LED
Display diagonal 163.8 cm (64.5")
Display resolution 3840 x 2160 pixels
Display brightness 500 cd/m²
HD type 4K Ultra HD
Response time 8 ms
Contrast ratio (typical) 4700:1
Viewing angle, horizontal 178°
Viewing angle, vertical 178°
Pixel pitch 0.372 x 0.372 mm
Vertical scan range 48 - 75 Hz
Horizontal scan range 30 - 81 kHz

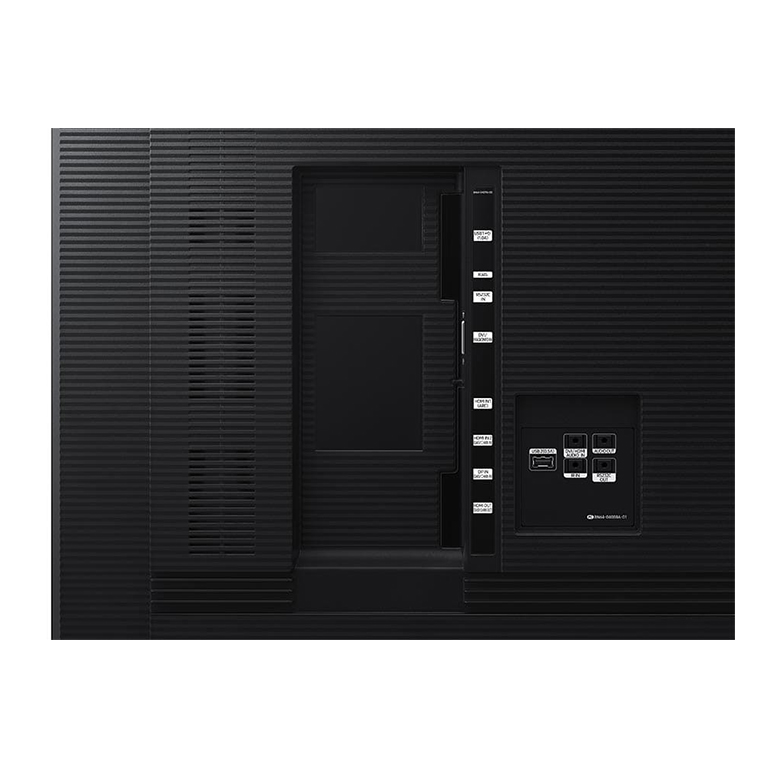

Ports & interfaces

USB port Yes
HDMI version 2.0
RS-232C Yes
Wi-Fi Yes
PC Audio in Yes
DisplayPorts quantity 1
Ethernet LAN Yes
HDMI ports quantity 3
DVI port Yes
DVI-D ports quantity 1
Ethernet LAN (RJ-45) ports 1
USB version 2.0
USB ports quantity 2

Audio

Number of built-in speakers 2
RMS rated power 20 W
Built-in speaker(s) Yes

Design

Design Digital signage flat panel
Placement supported Indoor
Bezel width (top) 9.2 mm
Bezel width (side) 9.2 mm
Bezel width (bottom) 1.12 cm
Product colour Black
Panel mounting interface 400 x 400 mm
Certification 60950-1, EMC B
VESA mounting Yes

Performance

Purpose Universal
Operating hours (hours/days) 24/7
HDCP Yes
Plug and Play Yes
Wi-Fi Yes

Power

Heat dissipation 618.9 BTU/h
Power consumption (sleep) 0.5 W
Power consumption (typical) 131 W
AC input voltage 100 - 240 V
AC input frequency 50 - 60 Hz

Computer system

Computer system Yes
Processor cores 4
Processor family ARM Cortex
Processor model A72
Processor frequency 1.7 GHz
L2 cache 2048 KB
Operating system installed Tizen 4.0
Internal memory 2.5 GB
Memory clock speed 1500 MHz
Internal storage capacity 8 GB
User memory 4.12 GB
Video formats supported AVC,AVS,H.263,H.264,HEVC,MPEG1,MPEG2,MPEG4,VC-1,VP8,VP9
Audio formats supported AC3
Image formats supported BMP,JPEG

Weight & dimensions

Width 1453.9 mm
Depth 46.3 mm
Height 831 mm
Weight 24.9 kg

Packaging data

Package width 1611 mm
Package depth 185 mm
Package height 973 mm
Package weight 33.3 kg
Quick start guide Yes
Batteries included Yes
Handheld remote control Yes
Cables included AC

Packaging content

Quick start guide Yes
Batteries included Yes
Handheld remote control Yes
Cables included AC

Operational conditions

Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 10 - 80%

Certificates

Certification 60950-1, EMC B

Technical details

VESA mounting Yes
LED backlighting type Edge-LED BLU

Thin Client

Processor family ARM Cortex
Processor model A72
Processor frequency 1.7 GHz
L2 cache 2048 KB
Operating system installed Tizen 4.0
Internal memory 2.5 GB
Memory clock speed 1500 MHz
Internal storage capacity 8 GB
User memory 4.12 GB
Video formats supported AVC,AVS,H.263,H.264,HEVC,MPEG1,MPEG2,MPEG4,VC-1,VP8,VP9
Audio formats supported AC3
Image formats supported BMP,JPEG

Other features

Wi-Fi Yes
Bezel width (top) 9.2 mm
Bezel width (side) 9.2 mm
Bezel width (bottom) 1.12 cm
L2 cache 2048 KB
Memory clock speed 1500 MHz
User memory 4.12 GB
Quick start guide Yes
Plug and Play Yes
