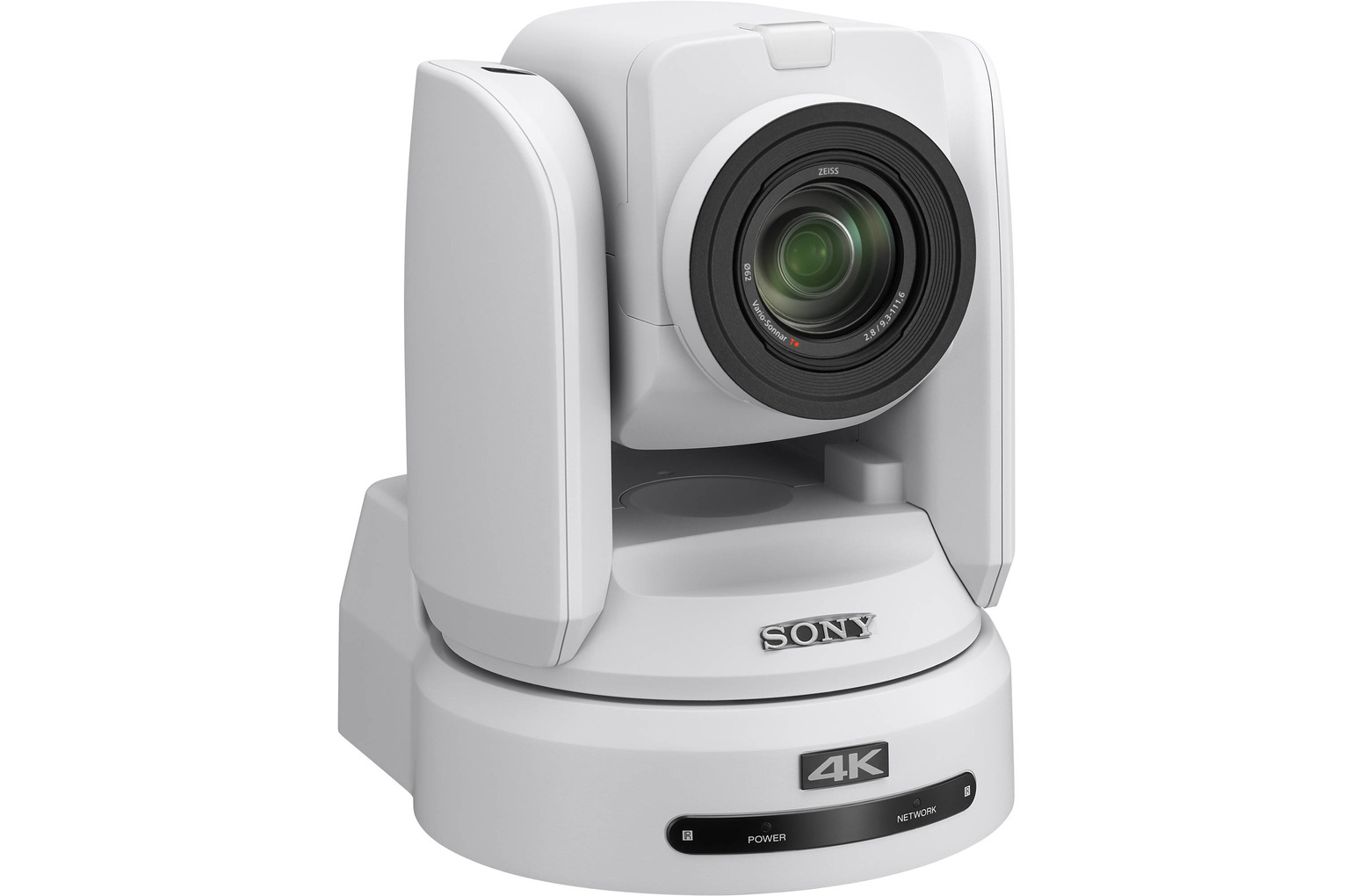

    The Sony BRC-X1000 is Sony’s first 4K remote camera. In conclusion it combines uncompromising broadcast picture quality and silent PTZ operation with the flexibility of 3G-SDI and HDMI connections.


    Sony BRC-X1000 Camera Features

    Day/Night: Yes
    Visibility Enhancer: Yes
    Image Flip On/Off
    Picture Profile Preset: Yes
    ND Filter: Off, 1/4, 1/16, 1/64 switchable in menu
    Color Gain: Yes (15 step)
    Color Hue; Yes (15 step)
    Color Matrix: Off/Standard/High Saturation/FL light/MOVIE/STILL/CINEMA/PRO/ITU709/BW
    Gamma Level: Yes (15 step)
    Black Level: Yes (97 step)
    Black Gamma: Yes (15 step)
    Knee Point: Yes (13 step)
    Knee Slope: Yes (15 step)
    Flicker Cancel: On/Off


    Sony BRC-X1000 Specifications

    Image Sensor 1.0-type back-illuminated Exmor R CMOS sensor
    Image Sensor (Number of Effective Pixels)Approx. 14.2 Megapixels
    Image Sensor (Total Number of Pixels)Approx. 20.4 Megapixels
    Signal System 2160/29.97p, 1080/59.94p, 1080/59.94i, 720/59,94p, 2160/25p, 1080/50p, 1080/50i, 720/50p, 2160/23.98p, 1080/23.98p
    Minimum Illumination (50IRE)1.7 lux (50IRE, F2.8, 1/30s, Max.Gain)
    Horizontal Resolution 1800 TV line (in 3G-SDI output) (center)
    Gain Auto/Manual (-3dB to +33dB)
    Shutter Speed 1/10000s to 1/8 (59.94/29.97)
    1/10000s to 1/6 (50/25/23.98)
    Exposure Control Auto, Manual, Priority mode (shutter priority, iris priority, gain priority), Back light, Spot light
    White Balance Auto1/Auto2/One Push/Indoor/Outdoor/Manual
    Optical Zoom 12x
    Clear Image Zoom: 2x
    *1.5x at 4K resolution
    Digital Zoom No
    Tele Convert Mode: Off, 2x
    *1920x1080 only
    Focusing System Auto/Manual
    Horizontal Viewing Angle 64.6° (Wide-end)
    Focal Length f=9.3 to 111.6mm
    F2.8(Wide) ,F4.5 (Tele)
    Minimum Object Distance 1000 mm(Tele)
    80 mm(Wide)
    Pan/Tilt Angle Pan: ±170°
    Tilt: +90°/-30°
    Pan/Tilt Speed Pan:
    0.3° to 60°/s *1
    0.05° to 60°/s *2
    0.02° to 60°/s *3

    0.3° to 60°/s *1
    0.05° to 60°/s *2
    0.02° to 60°/s *3

    *1 When P/T SPEED TYPE setting is NORMAL
    *2 When P/T SPEED TYPE setting is Extd. RANGE (Requires firmware V2.10)
    *3 When P/T SPEED TYPE setting is Extd. STEP (Requires firmware V2.10)
    Pan/Tilt Slow Mode: Yes
    Pan/Tilt Operation NoiseNC30 or less*
    * Sony measurement conditions
    Preset Position 100
    PTZ Trace Memory 16
    PTZ Motion Sync: Yes
    Camera Tracking Data Output: Yes
    (Requires firmware V2.10)
