    Bose DesignMax Speaker makes it easy to bring great sound to tight spaces.



    Combine DesignMax models to complete any design, big or small — 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options

    Deliver instantly impressive sound with custom Bose drivers — no DSP or EQ required. For even better sound, use select Bose DSPs and amplifiers to enable Bose loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level.

    Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos

    Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage

    Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier

    Install in confined ceiling spaces with low-profile backcan measuring just 10 centimeters (3.9 inches) high

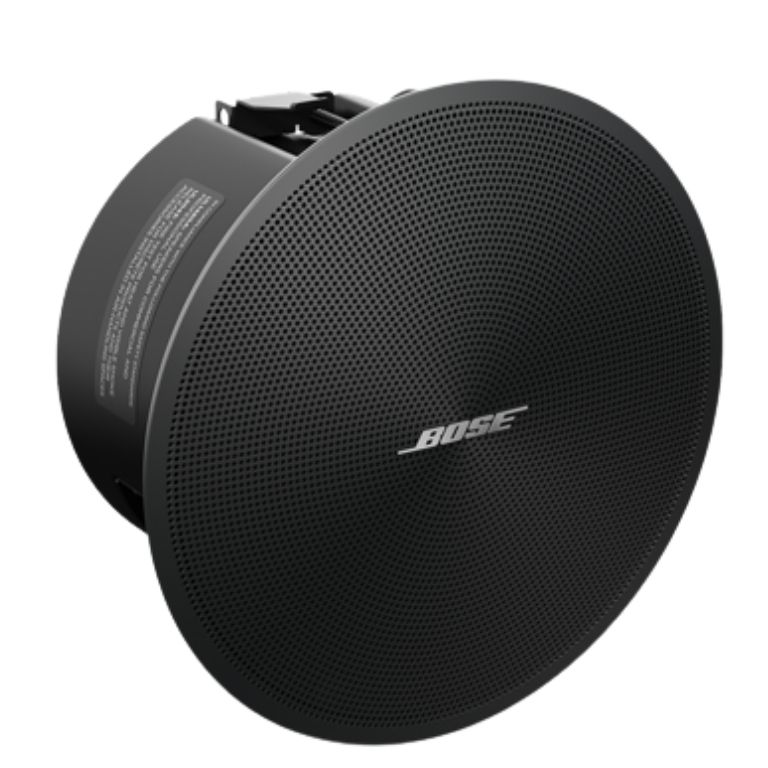

    Bose DesignMax Speaker

    Technical Summary

    Frequency Response (+/-3 dB)
    95 - 18,000 Hz

    Nominal coverage (H x V)
    150° conical

    Power Handling, peak
    80 W

    Maximum SPL @ 1m
    97 dB

    Frequency Range (-10 dB)
    85 - 19,000 Hz

    Power Handling, long-term continuous
    20 W

    Sensitivity (SPL/1W @ 1 m)
    84 dB

    Nominal Impedance
    16 Ω (transformer bypass)
