    Description

    Warranty: Comprehensive Warranty No ongoing subscriptions charges.

    The IMPACT Plus by Clevertouch is feature rich, with solutions for free teachers from the constraints of the restrictive traditional classroom. Make lessons extraordinary with the IMPACT Plus.

    How IMPACT™ works for your school

    • Save time lesson planning with subscription free software
    • Apps for Blended Learning
    • Screen mirroring with built-in teacher controls
    • Making integration and installation easier
    • High Precision Technology
    • Send messages, alerts and media to all of your Clevertouch screens remotely

    Teachers can concentrate on teaching

    With mobile device management (MDM) and overthe-air updates (OTA), the update of software, apps, firmware, and troubleshooting is all controlled remotely by your IT department, leaving teachers free to teach.

    Express connectivity

    Our elevated connectivity allows you to share content with Android, iOS, Windows and Chrome devices. As expected, Wi-Fi® and Bluetooth® and a slot-in PC option ensures we’ve got your connectivity covered. Including 4GB RAM, extensive storage for those non-cloud needs, Gigabit LAN integration, 4K User Interface, OTA Updates and Remote Management – just some of the features of this world class product.

    Integrate effortlessly

    With Clevertouch, teachers are not limited to one type of presentation suite, software provider, platform or OS. Teachers are free to use existing resources – and convert old resources tied to other providers – easily and quickly. Teachers can also switch seamlessly between Android and PC modes and continue using existing services such as Google Classroom or Microsoft packages effortlessly within your Clevertouch suite.

    Practical differentiation

    Teachers and students are more connected than ever, with easy to use mirroring and touch-back on up to 50 devices at any one time. Use split screen mode to show the work of 4 students at once. The teacher can use their mobile device to control their Clevertouch IMPACT Plus, giving them freedom of front of class instruction while enabling effective individual, small group and peer learning to help close the attainment gap.

    Visit the manufacturer's website.

    Features

    High Precision Technology

    Our patented Super Glide Touch technology offers the most fluid writing experience on a touchscreen. It’s as smooth as writing on a whiteboard – with no lag. With the ability to differentiate between palm-erase, fingertouch, and stylus-writing, there’s no need to change settings mid-flow.

    Infinity Whiteboarding

    Never run out of space with our infinite canvas. With numeracy tools, handwriting-to-text recognition, and the ability to insert images and shapes, all of which can be saved, printed, or shared to student devices.

    Cleverstore

    Access hundreds of free teaching apps to make lessons more engaging.

    4K

    True 4K resolution and sharper user experience throughout

    Super Wide Sound

    45W Max Power for room-filling sound.

    Microphone

    Built-in line array microphone.

    Clever Account Profile with NFC

    With an NFC sensor built into the bezel, just tap your NFC card on the bottom of the screen to instantly log in to your profile.

    New super cool stylus

    Comfort stylus to aid teaching

    Security Matters

    We know how important it is to be secure, so we’ve got lots of options for you to keep control of your device. Clevertouch can run on-or-off the network. Settings, apps and Android can all be disabled. Data can be wiped at the end of a session and the screen can be locked with a secure passcode.

    Environmentally Friendly Motion Detection

    Equipped with Proximity Sensors your Clevertouch will power off when no one is detected in the room.

    Connectivity

    Huge connectivity including two of the latest USB-C ports. Allows single cable connection for audio, video and touch. One USB-C gives the
    ability to charge your device while also casting to the main display.

    Cloud Accounts

    Sync with your Cloud accounts so that you can work anywhere at any time.

    Software

    LYNX

    Lynx annotation and lesson planning software allows teachers to create multi-page lessons with embedded media. Use with a connected computer, or in the Lynx app.

    Snowflake

    Create interactive activities for your class, or join the online Lessons Community to download activities that others have created.

    Specifications


    Download Specifications Sheet

    Display

    Diagonal Size 55" 4K, 65" 4K, 75" 4K, 86" 4K
    Screen Type TFT LCD - Direct LED Backlight
    Aspect Ratio 16:9
    Display Colours 1.07 Billion (10 bit)
    Resolution 4K UHD (3840x2160 @60Hz)
    Response Time 8ms
    Refresh Rate 60Hz
    LCD Viewing Angle 178˚
    Brightness 400 cd/m2
    Contrast Ratio
    55" 1200:1
    65" 1200:1
    75" 1200:1
    86" 1200:1
    Dynamic Contrast Ratio
    55″ 5000:1
    65″ 5000:1
    75″ 5000:1
    86″ 5000:1
    Glass Hardness Tempered Glass - Mohs Level 7
    Glass Type Heat tempered - Anti Glare - Super Glide Surface
    Main Board V811

    Interactivity

    Writing Technology High Precision Technology
    Continuous Touch Points 20
    Touch Resolution 32768x32768px
    Response Time < 8ms
    Touch Accuracy 1.5mm
    Minimum Object Size 3mm
    Touch Tool Finger, Gesture & Pen
    Simultaneous Writing Yes
    Ink In Tools Yes – LYNX
    Pens Included 2 with different colour assignment to each end
    Pen Type Dual Recognition Stylus
    Pen Holder Integrated Full-length Pen Tray
    Pen Tip Diameter 3mm/7mm
    Pen & Touch Differentiation Yes
    Pen Identities 2
    Palm Rejection Yes
    Annotation Over Any Source Yes
    Classroom Essential Apps
    Includes Whiteboard, Annotate, Timer, Media Players,
    Browser, PDF Reader, Screen Record, Spinner, Voting,
    Maths Tools
    Compatibility Windows 7 to 10, Windows XP, Linux, Mac, Android,
    Chrome
    Tracking Rate 6m/s
    Scan Rate 200Hx
    Gestures & Edge Swipes Windows Supported

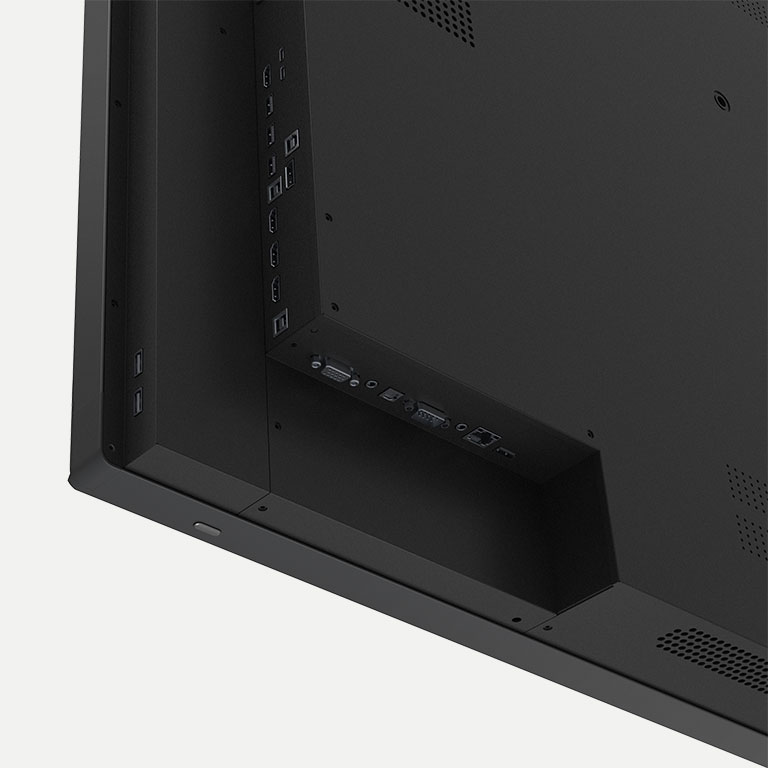

    Connectivity

    OPS Slot 1 - Intel® spec
    HDMI In 3
    HDMI Out 1
    USB-A 2.0 3 (1 for system upgrade)
    USB Touch (type B) 3
    USB A 3.0 (faster data transfer) 3
    USB C 2 (One supports charging any device)
    LAN In (RJ45) 1 GB
    RS-232 Yes
    Wake-on-Lan Yes
    Clevertouch Wireless
    Adapter 2.0 Yes
    Bluetooth Yes
    Displayport In 1
    VGA In 1
    VGA Audio In 1
    Optical Out 1
    Headphone 1
    Touch Out 3
    NFC Reader / Writer Yes
    Camera Optional extra
    Proximity Sensor Yes

    Computing

    Operating System Android Oreo 8
    System Version LUX 8
    RAM 4GB
    Internal Storage 32GB
    CPU Dual Core A73+Dual Core A53
    GPU Quad Core Mali G51
    Android Resolution 4K
    Android Module Slot Yes
    Integrated LUX UI Yes

    Audio

    Dual Front Facing, Bass
    Enhanced Speakers 2 x 15 Watt Speakers + 15 Watt Subwoofer
    Audio Out Yes
    SPDIF / Fibre Yes
    Sound Channel 2.1
    Line Array Microphone Yes
    Super Wide Sound Yes

    Accessories

    Clevershare3

    Screenshare with touch-back

    Connect any device with USB-C port using the Clevershare 3 dongle. Compatible with IMPACT, IMPACT Plus and UX Pro.

    PC Modules

    i5 OPS

    OPS module for IMPACT, IMPACT PLUS, and UX Pro

    8th Generation “Whiskey Lake” Processor, 8GB DDR4 2400 RAM, 250GB NVMe M.2 SSD, Supports up to 4K video resolution

    i7 OPS

    OPS module for IMPACT, IMPACT PLUS, and UX Pro

    8th Generation “Whiskey Lake” Processor, 16GB DDR4 2400 RAM, 250GB NVMe M.2 SSD, Supports up to 4K video resolution

    i5 PC module

    Slot in PC module for Plus Series and Pro Series High Precision and E-CAP

    Windows 10 Pro Intel® Core™ i5 PC with 4GB RAM and 128GB SSD. Integrated Intel® HD Graphics and Intel H110 Express Chipset. 6x USB 3.0, 1x RJ45, 1x VGA out, 1x audio out, 1x audio in, 1x DisplayPort, 1x HDMI out.

    i7 PC module

    Slot in PC module for Plus Series and Pro Series High Precision and E-CAP

    Windows 10 Pro Intel® Core™ i7 PC with 8GB RAM and 256GB SSD. Integrated Intel® HD Graphics and Intel H110 Express Chipset. 6x USB 3.0, 1x RJ45, 1x VGA out, 1x audio out, 1x audio in, 1x DisplayPort, 1x HDMI out

    Trolleys & Mounts

    Electrical Trolley Lift - Low Access

    Compatible with all Clevertouch displays

    This model is suitable for smaller children with a minimum screen height of 1040mm/41-inch to the centre of the screen, and 500mm/19-inch height adjustment

    Electrical Trolley Lift and Tilt - Standard Height

    Compatible with 55"-70" Clevertouch displays

    Tilts 90° for whiteboard, easel or table mode. Suitable for taller children and adults, with a minimum screen height of 1175mm/46-inch to the centre of the screen, and 500mm/19-inch height adjustment

    Electrical Trolley Lift and Tilt - Low Access

    Compatible with 55"-70" Clevertouch displays

    Tilts 90° for whiteboard, easel or table mode. Suitable for smaller children or seated users, with a minimum screen height of 960mm/38-inch to the centre of the screen, and 280mm/11-inch height adjustment

    Electrical Trolley Lift and Tilt - All Heights

    Compatible with 55"-70" Clevertouch displays

    Tilts 90° for whiteboard, easel or table mode. Suitable for working at all heights, with a minimum screen height of 710mm/28-inch to the centre of the screen, and 700mm/27-inch height adjustment

    Electrical Wall Lift - Standard Height

    Compatible with all Clevertouch displays

    Suitable for taller children and standing adults, with a minimum screen height of 1285mm/50-inch to the centre of the screen, and 500mm/19-inch height adjustment

    Electrical Wall Lift - Low Access

    Compatible with all Clevertouch displays

    Suitable for smaller children or seated users, this wall lift has a minimum screen height of 960mm/38-inch to the centre of the screen, and 500mm/19-inch height adjustment.
