Description

Warranty: Warranty term and upgrade options vary by region. Contact your local reseller or distributor for information and visit www.clevertouch.com/about/warranty

The Clevertouch UX Pro Interactive Display is the latest large format touchscreen for enterprise, from CLEVERTOUCH. The touchscreen is available in a range of sizes for all applications. Crystal clear audio and video with powerful built in features for all your meetings.

Sync with your MS Exchange or Office 365 calendar to see instantly when a room is busy or available; book the room with a single click. Login to your settings with your account profiles and access your favourite cloud accounts have Google Drive, OneDrive and Dropbox.

Present without limitations with our Infinity Canvas whiteboard app. Connect any device on any platform, using the USBC Clevershare dongle, or with the Clevershare app. Share projects with others and markup in real time. Invite collaborators to join your meeting via video, this web browser based platform requires no software or app download.

Turn your CLEVERTOUCH interactive display into a digital signage display, so when it isn’t in use, you can advertise give company information or welcome visiting clients.

Upgrade to a Windows 10 Pro, state of the art latest Intel OPS module, continue using your existing applications and add any camera for a truly flexible solution.

Work on or off the network, lock down settings, wipe your data at the end of a session with one click. Device Management and over the air updates, all controlled remotely, no additional or ongoing expenses subscriptions.

Visit the manufacturer's website.

Features

NUITEQ™ Stage
Embedded Digital Signage
Clevershare™ Mirroring
Device To The Board Free for the life of the screen (touch back)
Accounts Profiles
Cloud Account Access
Embedded Room Booking
Whiteboard Annotation
Email Out Direct From
Touchscreen
Scan QR Code For Saving Work
CleverMessage™ - Instant Alert
Messaging
Over-the-Air Updates
Remote Management of Touchscreens (MDM) - Five year licence

Specifications


Display

Diagonal Size 55" 4K, 65" 4K, 75" 4K, 86" 4K
Screen Type TFT LCD - Direct LED Backlight
Aspect Ratio 16:9
Display Colours 1.07 Billion (10 bit)
Resolution 4K UHD (3840x2160 @60Hz)
Response Time 8ms
Refresh Rate 60Hz
LCD Viewing Angle 178˚
Brightness 400 cd/m2
Contrast Ratio
55" 1200:1
65" 1200:1
75" 1200:1
86" 1200:1
Dynamic Contrast Ratio
55″ 5000:1
65″ 5000:1
75″ 5000:1
86″ 5000:1
Glass Hardness Tempered Glass - Mohs Level 7
Glass Type Heat tempered - Anti Glare - Super Glide Surface
Main Board V811

Interactivity

Writing Technology High Precision Technology
Continuous Touch Points 20
Touch Resolution 32768x32768px
Response Time < 8ms
Touch Accuracy 1.5mm
Minimum Object Size 3mm
Touch Tool Finger, Gesture & Pen
Simultaneous Writing Yes
Pens Included 2 with different colour assignment to each end
Ink In Tools Yes – LYNX
Pen Type Dual Recognition Stylus
Pen Holder Integrated Full-length Pen Tray
Pen Tip Diameter 3mm/7mm
Pen & Touch Differentiation Yes
Pen Identities 2
Annotation Over Any Source Yes
Compatibility Windows 7 to 10, Windows XP, Linux, Mac, Android,
Chrome
Tracking Rate 6m/s
Scan Rate 200Hx
Gestures & Edge Swipes Windows Supported

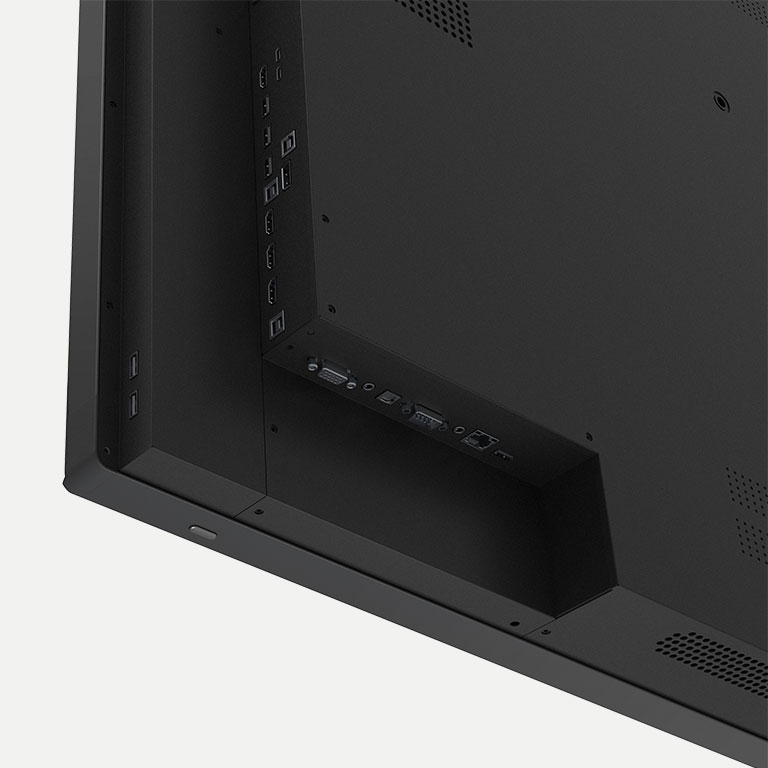

Connectivity

OPS Slot 1 - Intel® spec
HDMI In 3
HDMI Out 1
USB-A 2.0 3 (1 for system upgrade)
USB Touch (type B) 3
USB A 3.0 (faster data transfer) 3
USB C 2 (One supports charging any device)
LAN In (RJ45) 1 GB
RS-232 Yes
Wake-on-Lan Yes
Clevertouch Wireless
Adapter 2.0 Yes
Bluetooth Yes
Displayport In 1
VGA In 1
VGA Audio In 1
Optical Out 1
Headphone 1
Touch Out 3
NFC Reader / Writer Yes
Camera Optional extra
Proximity Sensor Yes

Computing

Operating System Android Oreo 8
System Version LUX 8
RAM 4GB
Internal Storage 32GB
CPU Dual Core A73+Dual Core A53
GPU Quad Core Mali G51
Android Resolution 4K
Android Module Slot Yes
Integrated LUX UI Yes

Audio

Dual Front Facing, Bass
Enhanced Speakers 2 x 15 Watt Speakers + 15 Watt Subwoofer
Audio Out Yes
SPDIF / Fibre Yes
Sound Channel 2.1
Line Array Microphone Yes
Super Wide Sound Yes

Power

Power Requirements 100 – 240V ~ 50/60Hz
Power Consumption (Normal)
55″ 87W
65″ 118W
75″ 124W
86″ 172W
Power Consumption (Standby) < 0.5 Watts
Ultra Quiet Fanless Design Yes

Operating & Storage Environment

Operating Temperature 0˚ to 40˚
Storage Temperature -20˚ to 60˚
Operating Humidity 10% to 90% RH
Storage Humidity 10% to 90% RH
Altitude Below 5000 metres

Physical Specifications

Panel Dimensions
55" 1268×792×90mm
65" 1489×919×91mm
75" 1709.7×1042.4×94.8mm
86" 1957.2×1181.9×94.8mm
Packed Dimensions
55” 1428x878x220mm
65” 1697x1038x220mm
75” 1875x1208x280mm
86” 2146x1326x280mm
Net Weight
55" 31.25Kg
65" 43.95Kg
75" 56.73Kg
86" 73.45Kg
Packed Weight
55" 38.55Kg
65" 53.95Kg
75" 75.75Kg
86" 95.30Kg
VESA Mount Point
55" 400×200mm
65" 600×400mm
75" 800x400mm
86" 800×600mm

Warranty

Warranty term and upgrade options vary by region. Contact your local reseller or
distributor for information and visit www.clevertouch.com/about/warranty

Compliance & Certification

Regulatory Certification CE, FCC, UL, Energy Star & EEC

UX Pro Built-in Features

NUITEQ™ Stage Yes
Embedded Digital Signage Yes
Clevershare™ Mirroring Any
Device To The Board Free for the life of the screen (touch back)
Integrated Personalised
Accounts Profiles Yes
Cloud Account Access
Embedded Room Booking Yes
Whiteboard Annotation Yes
Email Out Direct From
Touchscreen Yes
Scan QR Code For Saving Work Yes
CleverMessage™ - Instant Alert
Messaging Yes
Over-the-Air Updates Yes
Remote Management Of
Touchscreens (MDM) Yes - Five year licence

Packed Contents - Inside your Clevertouch Box

What’s In The Box (1) Clevertouch UX Pro
(1) 1.5M Length HDMI Cable
(1) 5M Length USB cable (A-B)
(2) 1.5M USBC Cable
(1) 3M Regional Power Cable
(1) 5M 3.5mm Audio Cable
(1) Remote Control
(2) Batteries for Remote Control
(2) Dual Recognition Stylus
(1) User Guide
(1) Quick Install Guide
(1) Clevertouch Wireless Adapter 2.0
(5) NFC Cards

Installation

The installation of this product should be completed by a qualified installer. Use of
components not supplied by Clevertouch or not meeting minimum specifications may
impact performance, safety and warranty. For more information, visit clevertouch.co.uk

Support

For all Clevertouch products, visit: support.clevertouch.com

Accessories

Clevershare3

Screenshare with touch-back

Connect any device with USB-C port using the Clevershare 3 dongle. Compatible with IMPACT, IMPACT Plus and UX Pro.

PC Modules

i5 OPS

OPS module for IMPACT, IMPACT PLUS, and UX Pro

8th Generation “Whiskey Lake” Processor, 8GB DDR4 2400 RAM, 250GB NVMe M.2 SSD, Supports up to 4K video resolution

i7 OPS

OPS module for IMPACT, IMPACT PLUS, and UX Pro

8th Generation “Whiskey Lake” Processor, 16GB DDR4 2400 RAM, 250GB NVMe M.2 SSD, Supports up to 4K video resolution

i5 PC module

Slot in PC module for Plus Series and Pro Series High Precision and E-CAP

Windows 10 Pro Intel® Core™ i5 PC with 4GB RAM and 128GB SSD. Integrated Intel® HD Graphics and Intel H110 Express Chipset. 6x USB 3.0, 1x RJ45, 1x VGA out, 1x audio out, 1x audio in, 1x DisplayPort, 1x HDMI out.

i7 PC module

Slot in PC module for Plus Series and Pro Series High Precision and E-CAP

Windows 10 Pro Intel® Core™ i7 PC with 8GB RAM and 256GB SSD. Integrated Intel® HD Graphics and Intel H110 Express Chipset. 6x USB 3.0, 1x RJ45, 1x VGA out, 1x audio out, 1x audio in, 1x DisplayPort, 1x HDMI out

Trolleys & Mounts

Electrical Trolley Lift - Low Access

Compatible with all Clevertouch displays

This model is suitable for smaller children with a minimum screen height of 1040mm/41-inch to the centre of the screen, and 500mm/19-inch height adjustment

Electrical Trolley Lift and Tilt - Standard Height

Compatible with 55"-70" Clevertouch displays

Tilts 90° for whiteboard, easel or table mode. Suitable for taller children and adults, with a minimum screen height of 1175mm/46-inch to the centre of the screen, and 500mm/19-inch height adjustment

Electrical Trolley Lift and Tilt - Low Access

Compatible with 55"-70" Clevertouch displays

Tilts 90° for whiteboard, easel or table mode. Suitable for smaller children or seated users, with a minimum screen height of 960mm/38-inch to the centre of the screen, and 280mm/11-inch height adjustment

Electrical Trolley Lift and Tilt - All Heights

Compatible with 55"-70" Clevertouch displays

Tilts 90° for whiteboard, easel or table mode. Suitable for working at all heights, with a minimum screen height of 710mm/28-inch to the centre of the screen, and 700mm/27-inch height adjustment

Electrical Wall Lift - Standard Height

Compatible with all Clevertouch displays

Suitable for taller children and standing adults, with a minimum screen height of 1285mm/50-inch to the centre of the screen, and 500mm/19-inch height adjustment

Electrical Wall Lift - Low Access

Compatible with all Clevertouch displays

Suitable for smaller children or seated users, this wall lift has a minimum screen height of 960mm/38-inch to the centre of the screen, and 500mm/19-inch height adjustment.
