Description

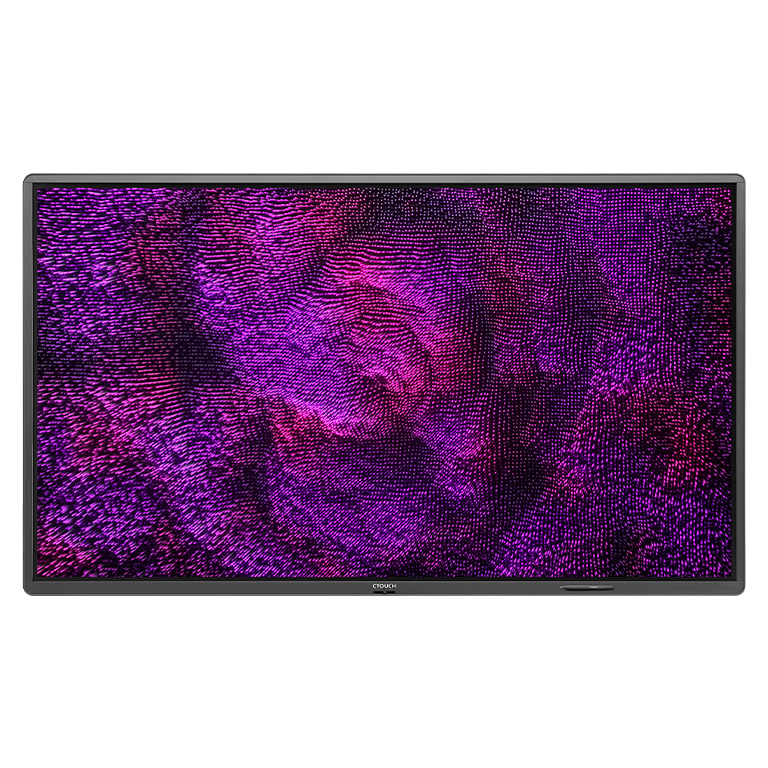

CTOUCH Riva is designed to be the most intuitive touchscreen we can imagine.

With the touch of only a single button you have access to all options on the CTOUCH Riva screen, making your life so much easier. Everyone can do the job! It allows you to use your own software (Android, Linux or Windows based), as you are used to. And you can easily connect other devices. You decide what works best for you!

It is so intuitive; you already know how to use it!

The CTOUCH RIVA designed perfectly for education. Allowing teachers to focus on what they do best. TEACH!

Creating a fun and dynamic environment for students to learn, the CTOUCH RIVA is turning learning (and teaching) into fun!

WOW your class with 4K Media. Blow them away with incredible JBL 80-watt speakers. Involve multiple students with 32 simultaneous touch points and share any device to the screen… or vice versa.

Instant whiteboard! You can write over anything with the floating tool bar. Install shortcuts and save your lessons to your favourite cloud apps…

Your screen turns on and off automatically with human presence detection. Login via fingerprint or NFC. Manage and control your devices with Radix and switch on your digital signage with TrilbyTV.

Features

CTOUCH Riva Features

TrueBeam Touch – simulates natural handwriting

Annotate, write and draw like never before with TrueBeam Touch technology. It feels natural and smooth like writing on real paper. Simply use your finger or a pen and write as fast as you can. Use your hand palm for easy erasing without switching tools. Easy, right? Triple S glass: smooth, stripeless and safe, writing feels very smooth, leaving minimal stains behind.

Wireless screen sharing with EShare

Tell your audience to BYOD (bring your own device). Encourage them to share their work, knowledge and insights on the big screen via EShare. Or push the content from the display to other devices in the room. Knowledge sharing has never been easier. It works with Android, Windows, Mac and Chrome devices. You provide a steady internet connection, we provide the rest.

State-of-the art Android 8 technology

The CTOUCH Riva touchscreen is based on Android 8. Use functionalities like split-screen to work on different content. Hide or lock settings, or even lock down the Android source. It’s up to you! With carefully selected apps, you're ready to go, right from the start. In addition, you're free to add any other apps you need via the CTOUCH app store.

Over-the-air updates: your display will always be up-to-date

The CTOUCH Riva comes with Radix Viso Mobile Device Management (5-year license). This allows you to control all screens from one central point. You will no longer have to update settings, push or delete apps screen by screen. Just keep sitting in your chair and control them from there.

BRIX compatible: modular and futureproof

The CTOUCH Riva is designed with sustainability and modularity in mind. It can be upgraded over time – according to the needs of the users – with CTOUCH BRIX modules. Ready to dive into Microsoft Teams meetings? Want to bring Zoom into your meeting room? This touchscreen provides the platform to make it happen.

Incl: TrilbyTV and Oktopus software

Fingerprint Scanner

Login and unlock your screen with your fingerprint
Start preparing your lessons right away
Protect your files from unwanted users

Human Presence Detection module

Screen automatically turns on when you enter the room
And off again when classrooms are empty
Saving money and our planet!

NFC Reader module

Easy login: tap your card and go!
Lock your screen for unwanted users
Reliable and safe

Wi-Fi module

Add wireless internet to your screen
Build-in hotspot function
Bluetooth

Specifications


Download Specifications Sheet

CTOUCH Riva Specifications

Touch system

Touch system: TrueBeam Touch
Touch points: 32
Touch tools: hands or other solid (soft tip) object
Accuracy: ±1 mm
Minimum response size: > 1,5 mm
Touch resolution: 32.768 x 32.768 pixels
Interface: USB 2.0 compatible (full speed) HID complaint,

Plug & Play compatible. Backwards compatible with USB 1.1

Supported OS: Windows, macOS, Chrome, Linux and Android
Touch driver: not required for 32 touch point (under Windows);macOS gestures require a driver Panel
Diagonal size: 54.64" (1.388 mm)
Panel technology: TFT LCD
Display resolution: 3.840 x 2.160 pixels
Frame rate: 60 Hz
Brightness: 350 cd/m²
Aspect ratio: 16:9
Contrast ratio (static): 4.000:1
Contrast ratio (dynamic): 25.000:1
Response time (gray to gray): 8 ms
Display colours: 1.07 Billion (8 bits + FRC)
Pixel pitch (W x H): 0.315 x 0.315 mm
Viewing angle: 178° / 178°
Backlight type: direct LED
Service life: > 30.000 hours
Orientation: landscape

Glass

Glass: Triple S Glass (Smooth, Stripeless, Safety)
Type: heat tempered, anti glare, safety glass
Thickness: 4 mm
Hardness: 7 Mohs

Connectivity

Video input (digital): 3x HDMI 2.0 (1x ARC), 1x DP 1.2, 1x USB-C (USB 3.1 Gen 2)
Video output (digital): 1x HDMI out
Video input (analog): 1x VGA (including 1x Mini Jack)
Audio input: 1x Mini Jack (dedicated audio source)
Audio output: 1x Mini Jack, 1x S/PDIF Optical
USB: 3x USB 3.0 (type A), 2x USB 2.0 (type A)
Touch: 3x USB (type B)
RS232C: 1x DE-9F
LAN port: 2x RJ45 10/100/1000 BaseT

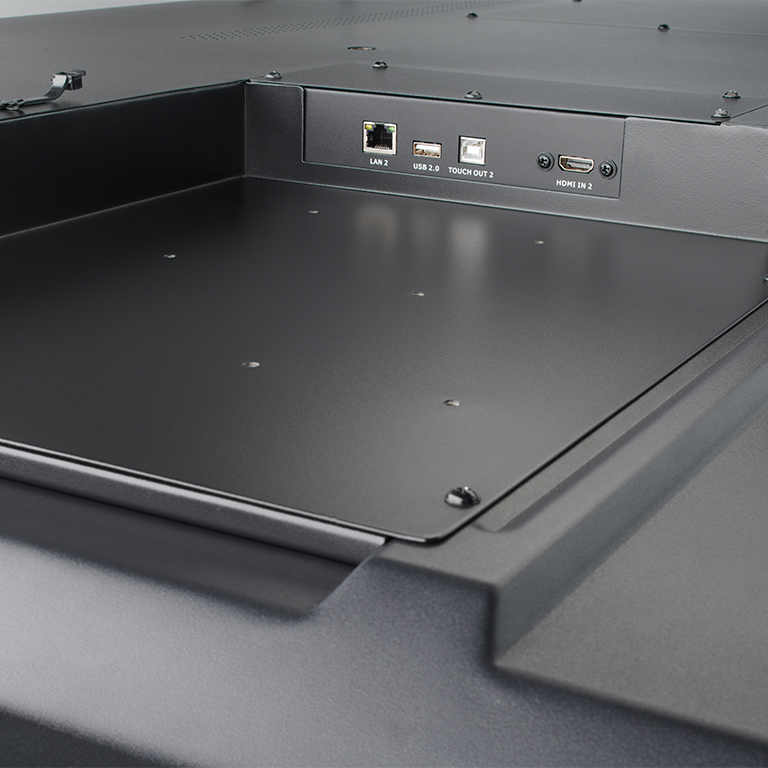

Module-slots: 1x Wi-Fi slot, 1x OPS-slot (UHD@60Hz), 1x CTOUCH module-slot (modules are optional)
Dedicated ports: 1x NFC Reader port, 1x Fingerprint Scanner port, 1x Human Presence Detection port (modules are optional)

Video

Eye comfort: blue light filter, eye protection mode
Colour temperature: warm, cool, normal
Picture modes: dynamic, standard, soft, user Sound: designed, tuned, built by HARMAN
Transducers:2 stereo JBL® 3-way speakers (tweeter, mid-range and woofer)
Amplifier Power: 80 W
Frequency range: 60 Hz - 20 kHz
JBL® LiveStage (Virtual) surround sound

COStm

System version: Android 8.0
Chipset: Hisilicon 811
CPU: 2x ARM Cortex A73, 2x Cortex A53
GPU: G51MP4
Memory: 4 GB
On-board storage: 32 GB OSD
Languages: Danish, Dutch, English, Finnish, German, Norwegian, Spanish, Swedish

Power

Power supply: AC 100-240V 50/60 Hz
Power consumption (in operation): 95 W
Power consumption (in standby): < 0.5 W
Ambient light sensor

Quality approvals

Regulatory approvals: CE, FCC, RoHS compliant
Green approval: WEEE
ISO Standard: ISO9001 and ISO14001

Accessories

CTOUCH Riva Accessories

Dynamic Pen

The Dynamic Pen simulates natural handwriting and lets you write as fast as you're used to.

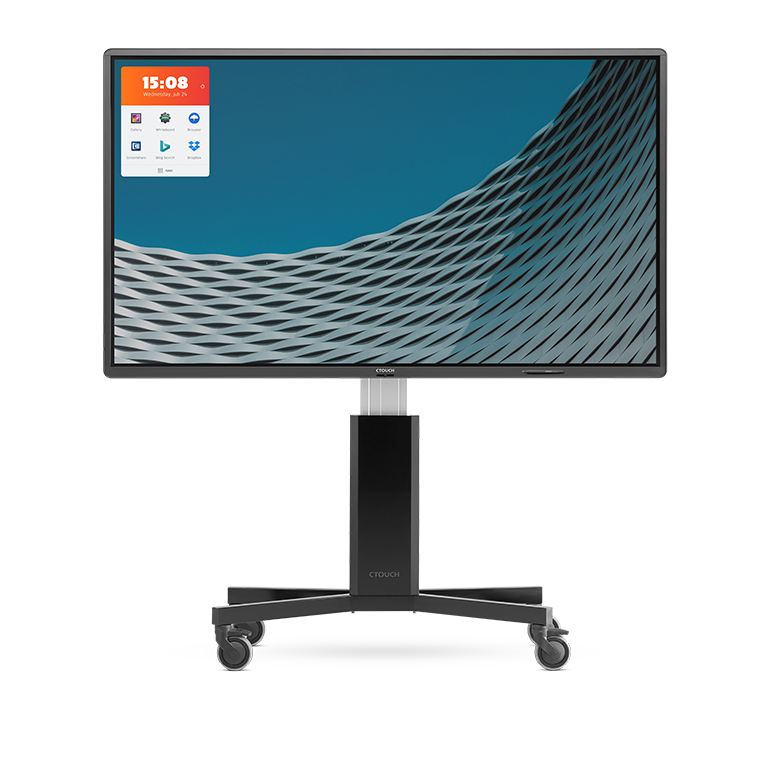

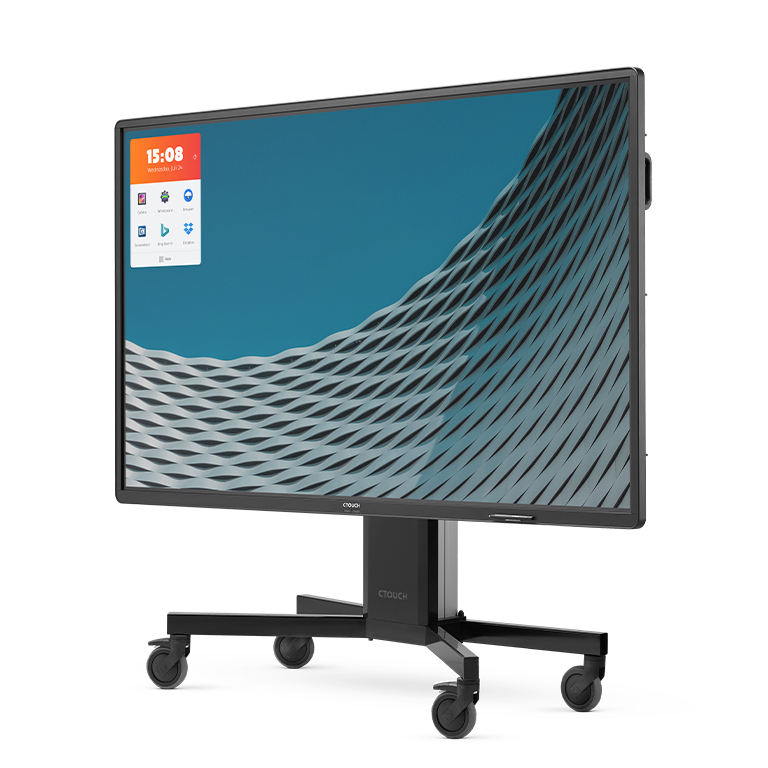

Mobile Lift

Yeah sure, you can put me anywhere and change my height! Easy to install and operate. Suitable for all CTOUCH touchscreens.

Wall Lift

Your perfect fit for a flexible wall mounting solution. Easy to install and operate. Suitable for all CTOUCH touchscreens.

PC Modules

For optimal graphical and computing performance. Meet the Intel OPS i3 and i5 PC's.
