    Description

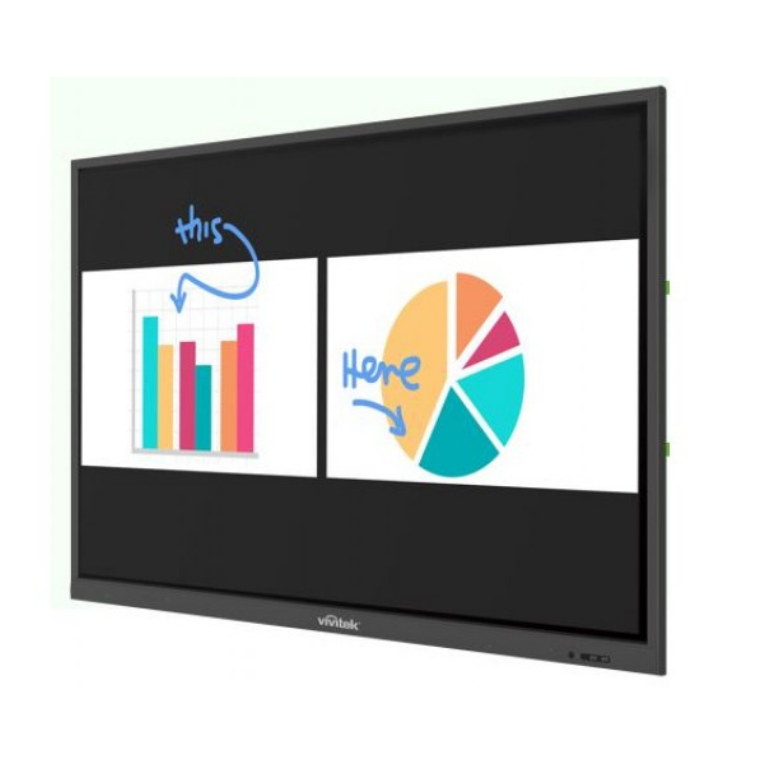

    Vivitek EK653I Screen

    The NovoTouch is the ultimate All-in-One Touch Panel, that combines a 4K –UHD resolution, Wireless Collaboration, Video Conferencing, Digital Whiteboard, and Digital Signage functionalities. Designed to take business meetings or education sessions to a new level of collaboration and interaction. With the NovoConnect built in solution, meeting participants can extend the laptop screen to the flat panel and compare information and collaborate with each other. The moderator feature keeps you in control of the meeting, while on-screen annotation allows for collaboration in real time. The NovoTouch is fully compatible with the ever-popular BYOD practice. Meanwhile, hybrid meetings with on-site and remote participants are facilitated with the video conferencing capabilities that include pre-installed Zoom, Teams or Skype for Business. Furthermore, the NovoTouch panel can be switched from collaboration to Digital Signage mode in between meetings to transform idle screens into digital announcement boards.

    Features

    Vivitek EK653I Screen

    • 4K-UHD (3840 x 2160) resolution
    • In-Plane Switching (IPS-ADS) panel technology offers outstanding detail and stunning visuals with Hyper-Viewing Angle
    • Flawless touch annotation provides high accuracy, fast response time and smooth gesture recognition
    • Anti-glare and durable surface protects against scratches or screen damage
    • Android 8.0 and Google G-suite are pre-installed, along with many Apps
    • Remote Manager for centralized device management
    • AES-256 Encryption, Password Protected, Dual Network Environment, ISO 27001 Certified

    Specifications


    Touch Technology: Infrared
    Total Touch Points: 20-Point Touch, 10-Point Writing
    Optimal Resolution: 4K Ultra High Definition (3840 x 2160 @ 60 Hz)
    Aspect Ratio: 16:9 Widescreen
    Brightness: 500 cd/m²
    Contrast Ratio: 4000:1
    Colour Processing: 1.07 Billion
    Orientation: Landscape Only
    OPS PC Slot: Yes (OPS Module Not Included)
    Surface Protection: 4mm Thick Toughened Glass (Level 7H on Mohs Scale of Mineral Hardness)
    Panel Lifespan: 30,000 Hours
    Built-in Speakers: 16 Watt x 2
    Embedded Operating System: Android 8.0
    BYOD Supported System: Windows 7 / 8 / 10 (32 bits and 64 bits), macOS 10.7 and above, iOS 7.0 and above, Android 4.0 and above, Chromebook
    Inputs: HDMI v2.0 (x2), VGA (x1), Audio-In Mini-Jack 3.5mm (x1), USB A 2.0 (x3), USB A 3.0 (x3), USB B for Touch (x2), RS232 In (x1), OPS PC Slot (x1)
    Outputs: HDMI v2.0 (x1), Audio-Out 3.5mm (x1), Audio-Out S/PDIF (x1)
    Network: LAN (x1), Wifi Dongle 802.11 a/b/g/n/ac 2.4GHz & 5GHz (x1)
    Collaboration: Screen mirroring (NovoConnect), Screen duplication over the corporate network (NT LiveScreen/ NT LiveReceiver), White board (Note), Screen login protection (Screen Lock), Screen Recording (NT Minutes), Video Conferencing, Over 50 Apps Built-In (NT App Store)
    Digital Signage / Announcement Board: NovoDS Digital Signage – Message and Announcement Board, Intuitive Drag-and-Drop Interface, Flexible Playlist Creation, Dynamic Content from text, audio, photos and videos to webpages, Twitter, RSS, Google Calendar, Weather, and More.
    Power Supply: AC 100 – 240V, 50/60Hz (3.0A)
    Consumption: 300W, 0.5W (Standby)
    VESA Wall Mounting: 800 x 400 mm (M8 x 25mm Bolts)
    Dimensions (W x H x D): 1,488.7 x 897 x 92 mm
    Weight: 41.4 kg

    Embedded CPU: Multi-Core High-Performance ARM®CPU
    Embedded GPU: 4*Mali™ G51
    Embedded RAM: 3GB DDR3
    Embedded Internal Storage: 16GB (eMMC Flash, about 9GB available)
    Warranty: 3 Year (5 Year for Education upon Registration)

    Accessories

    Optional Accessory: OPS Module, LauncherPlus
