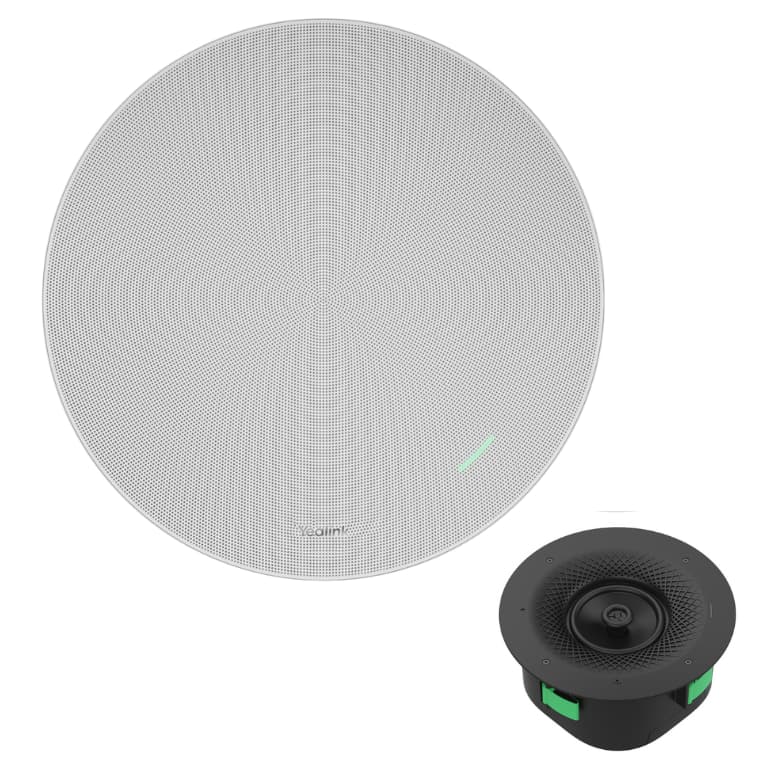

Yealink CS10 speaker Ceiling Loudspeaker
High-Quality Ceiling Audio in PoE and Dante Variants
Manufacturer: Yealink
Network Ceiling Speaker: CS10 (standard) / CS10‑D (Dante)
Low‑profile PoE+ coaxial ceiling speaker (5.7″ woofer + 1.1″ tweeter), 88 dB sensitivity, 99 dB max SPL. Dante option available.
Description
Warranty: Includes 2‑year manufacturer warranty; optional extended support via Comcen.
The Yealink CS10 speaker enhances conferencing audio with a refined 2‑way coaxial design. The 5.7″ woofer and 1.1″ tweeter deliver crisp and clear voice quality. Sensitivity at 88 dB@1 W/1 m and 99 dB continuous SPL ensure full-room coverage. It’s powered via PoE+ and includes integrated DAC and amplifier. The speaker supports standard (CS10) or Dante-enabled (CS10‑D) audio transmission over network. With a slim 120 mm depth and magnetic, paintable grille, it discreetly blends into modern ceilings .
Features
- Coaxial 2‑way speaker: 5.7″ woofer + 1.1″ tweeter
- Sensitivity: 88 dB @ 1 W/1 m; max SPL 99 dB @ 20 W/1 m
- PoE+ (IEEE 802.3at) powered; integrated DAC and amp
- Dante-enabled CS10‑D option for networked audio environments
- Low-profile 120 mm depth; paintable magnetic grille (white/black)
- UL 2043 plenum rating; versatile ceiling system compatibility
